From PyTorch to Petawatts(TensorRT)
A Developer's Guide to Mastering TensorRT for High-Performance Inference
Part 1: Foundations of GPU-Accelerated Inference
This part sets the stage by defining the problem space. It establishes why inference is a unique and critical challenge in the machine learning lifecycle and introduces TensorRT as the premier solution on NVIDIA hardware.
Section 1: The Inference Challenge: Beyond Model Training
The machine learning lifecycle is often discussed in terms of model training, a computationally intensive process of learning parameters from vast datasets. However, the true value of a model is realized only when it is deployed to make predictions on new, unseen data—a phase known as inference. While conceptually simpler than training, production inference presents a distinct and formidable set of engineering challenges that are critical to the success of any real-world AI application.
The core of the ML inference problem lies in a multi-faceted trade-off between performance, accuracy, and cost. Achieving high accuracy often necessitates complex models with billions of parameters, which in turn demand significant computational resources, leading to increased costs and power consumption. This tension defines the primary challenges that engineers must navigate:
Latency: For real-time applications, such as autonomous vehicle perception or interactive AI assistants, the time taken to generate a single prediction is paramount. High latency can render an application unusable, making its reduction a primary optimization goal.
Throughput: In data center or cloud environments, the objective is often to maximize the number of inferences processed per second. Higher throughput translates directly to lower operational costs and greater scalability.
Cost and Power Efficiency: Deploying models, especially on edge devices with limited computational capacity or energy constraints, requires minimizing both the hardware footprint and power draw. This is a crucial consideration for making AI accessible and sustainable.
Model Drift: A deployed model's performance can degrade over time as the real-world data it encounters diverges from its training data. This necessitates robust deployment pipelines that include monitoring and mechanisms for periodic model updates.
Successfully deploying a model requires more than just algorithmic optimization; it is a comprehensive systems engineering problem. An inference pipeline involves not only the model execution but also data ingestion, preprocessing, post-processing, and integration with surrounding infrastructure, which may include containerization with Docker, orchestration with Kubernetes, and multi-zone cluster management with load balancing. Therefore, an effective inference solution is not merely a fast model but a well-architected system. This perspective is essential for developers, as it frames model optimization not as an isolated task but as a critical component within a larger production ecosystem.
Section 2: The TensorRT Ecosystem: A Performance Engineer's Toolkit
NVIDIA TensorRT is a software development kit (SDK) designed specifically to address the inference problem on NVIDIA GPUs. It is not a training framework but a high-performance inference optimizer and runtime that takes a trained model and generates a highly optimized, deployable "engine". By focusing exclusively on inference, TensorRT can apply aggressive, hardware-specific optimizations that are not feasible during the more general-purpose training phase.
The TensorRT ecosystem provides a comprehensive toolkit for performance engineers. Its core optimization pillars, which will be explored in subsequent sections, include:
Precision Calibration: Reducing the numerical precision of model weights and activations from 32-bit floating point (FP32) to faster formats like FP16, BF16, or INT8, which leverage specialized Tensor Core hardware on modern NVIDIA GPUs.
Layer and Tensor Fusion: Combining multiple individual operations (e.g., a convolution, a bias addition, and a ReLU activation) into a single, custom CUDA kernel. This reduces kernel launch overhead and minimizes memory bandwidth usage by keeping intermediate data in fast on-chip memory.
Kernel Auto-Tuning: For a given operation and target GPU, TensorRT benchmarks a library of pre-implemented CUDA kernels to select the one that delivers the highest performance.
Dynamic Tensor Memory: Optimizing memory allocation to reduce the overall footprint and reuse memory for tensors whose lifetimes do not overlap.
Multi-Stream Execution: Enabling the parallel processing of multiple independent inference requests to maximize GPU utilization.
A developer can interact with this ecosystem through several components, each suited for different needs:
TensorRT Core Library (C++/Python): This is the fundamental API that provides direct access to the builder for creating engines and the runtime for executing them. This guide will focus on the Python API for its ease of use and rapid development capabilities.
Framework Integrations (Torch-TensorRT, TensorFlow-TRT): These are high-level wrappers that allow developers to apply TensorRT optimizations with minimal code changes, directly within the PyTorch or TensorFlow environments. While convenient for quick starts, they offer less control than the core API.
ONNX (Open Neural Network Exchange): This is a framework-agnostic format for representing deep learning models. The most robust and flexible workflow for production involves exporting a trained model from its native framework (e.g., PyTorch) to the ONNX format, and then using TensorRT's ONNX parser to build the optimized engine. This approach decouples the training stack from the deployment stack, a best practice in MLOps that allows for independent evolution of model development and production infrastructure. This guide will prioritize the ONNX workflow as it represents the most powerful and transferable skill for a developer.
Specialized Libraries:
TensorRT-LLM: A dedicated, open-source Python library built on TensorRT for accelerating Large Language Models (LLMs). It includes advanced, LLM-specific optimizations like in-flight batching and custom attention mechanisms.
TensorRT Model Optimizer: A unified library for advanced optimization techniques such as quantization and sparsity, designed to streamline the model compression process.
Deployment Runtimes:
NVIDIA Triton Inference Server: A production-grade serving solution that can manage and deploy TensorRT engines (and models from other frameworks) at scale, handling features like dynamic batching, concurrent model execution, and providing standardized HTTP/gRPC endpoints.
NVIDIA DeepStream SDK: A toolkit for building efficient, end-to-end video analytics pipelines. A TensorRT engine can serve as the core inference component within a larger DeepStream pipeline that manages video decoding, tracking, and other processing tasks in a hardware-accelerated manner.
Part 2: The Core TensorRT Workflow in Python
This part provides a practical, hands-on walkthrough of the fundamental TensorRT workflow using the Python API. We will take a pre-trained model, convert it to an optimized engine, and run inference.
Section 3: The Build Phase: Architecting an Optimized Engine
The TensorRT workflow is defined by a two-phase philosophy: a build phase and a runtime phase. The build phase is where all the optimization magic happens. It is typically performed offline and can be time-consuming, as TensorRT explores numerous optimization strategies to generate the most efficient engine for a specific model on a specific target GPU. The result of this phase is a serialized file, often called a "plan" or "engine," which is saved to disk.
The build phase is orchestrated through a series of objects from the TensorRT Python API :
trt.Logger: The entry point for all TensorRT operations. It controls the level of diagnostic messages printed by the library (e.g., errors, warnings, info).trt.Builder: The primary object that manages the entire build process.trt.IBuilderConfig: A configuration object that allows you to specify how the engine should be built. This is where you control optimizations like precision (FP16, INT8) and memory limits.trt.NetworkDefinition: An in-memory graph representation of your neural network. This graph is populated either manually, layer by layer, or more commonly, by a parser. TheEXPLICIT_BATCHflag is now the standard and required method for creating the network, indicating that the batch dimension is an explicit part of the tensor dimensions.trt.OnnxParser: The tool used to read an ONNX model file and populate theNetworkDefinitiongraph.
Hands-On Tutorial: From PyTorch to a FP32 TensorRT Engine
This tutorial will use a standard ResNet-50 model from
torchvisionto demonstrate the workflow.1. Export PyTorch Model to ONNX The first step is to convert the pre-trained PyTorch model into the ONNX format. This requires a dummy input tensor to trace the model's forward pass and create the static graph.
Python
import torch import torchvision.models as models # Load a pretrained ResNet-50 model model = models.resnet50(pretrained=True).eval().cuda() # Create a dummy input tensor with the correct shape and device dummy_input = torch.randn(1, 3, 224, 224, device='cuda') onnx_model_path = "resnet50.onnx" # Export the model to ONNX torch.onnx.export(model, dummy_input, onnx_model_path, input_names=['input'], output_names=['output'], opset_version=11) # Use a compatible opset version2. Build the TensorRT Engine With the
resnet50.onnxfile created, we can now use the TensorRT Python API to build the optimized engine.Python
import tensorrt as trt import os # Define file paths onnx_path = "resnet50.onnx" engine_path = "resnet50_fp32.engine" # 1. Create a Logger # Verbosity can be trt.Logger.INFO, trt.Logger.WARNING, trt.Logger.ERROR, etc. logger = trt.Logger(trt.Logger.WARNING) # 2. Create a Builder builder = trt.Builder(logger) # 3. Create a Network Definition # The EXPLICIT_BATCH flag is required for ONNX parsing network_flags = 1 << int(trt.NetworkDefinitionCreationFlag.EXPLICIT_BATCH) network = builder.create_network(network_flags) # 4. Create an ONNX Parser parser = trt.OnnxParser(network, logger) # 5. Parse the ONNX model with open(onnx_path, 'rb') as model_file: if not parser.parse(model_file.read()): print('ERROR: Failed to parse the ONNX file.') for error in range(parser.num_errors): print(parser.get_error(error)) exit() print(f"Completed parsing ONNX file from: {onnx_path}") # 6. Create a BuilderConfig config = builder.create_builder_config() # Set workspace size. This is the max GPU memory TensorRT can use for temporary # layer implementations. # A larger workspace can allow TensorRT to try more algorithms and find a faster one. config.set_memory_pool_limit(trt.MemoryPoolType.WORKSPACE, 1 << 30) # 1 GB # 7. Build and Serialize the Engine print("Building the TensorRT engine... This may take a few minutes.") serialized_engine = builder.build_serialized_network(network, config) if serialized_engine is None: print("ERROR: Failed to build the engine.") exit() # 8. Save the engine to a file with open(engine_path, "wb") as f: f.write(serialized_engine) print(f"Engine built and saved to: {engine_path}")Section 4: The Runtime Phase: Executing Inference with Precision
The runtime phase is where the optimized engine is loaded and used for inference. This phase is designed to be extremely fast and low-overhead. The key Python API objects for this phase are :
trt.Runtime: The object responsible for deserializing a saved engine file.ICudaEngine: The deserialized, executable engine. It can be queried for information about its expected inputs and outputs (bindings).IExecutionContext: The context for a specific inference task. A single engine can have multiple execution contexts, which is crucial for processing multiple inference requests in parallel on the same set of model weights.
Hands-On Tutorial: Running the ResNet-50 Engine
This script demonstrates how to load the engine, prepare data, and execute inference. It uses the
pycudalibrary for GPU memory management, which is a common pattern in TensorRT applications.Python
import tensorrt as trt import pycuda.driver as cuda import pycuda.autoinit # Initializes CUDA context import numpy as np from PIL import Image # 1. Load the TensorRT Engine engine_path = "resnet50_fp32.engine" logger = trt.Logger(trt.Logger.WARNING) runtime = trt.Runtime(logger) with open(engine_path, "rb") as f: engine = runtime.deserialize_cuda_engine(f.read()) # 2. Create an Execution Context context = engine.create_execution_context() # 3. Allocate Host and Device Buffers # We need to allocate memory for the input and output of the model. # The engine holds the information about the expected I/O shapes. host_input = np.zeros(engine.get_tensor_shape('input'), dtype=np.float32) host_output = np.zeros(engine.get_tensor_shape('output'), dtype=np.float32) # Allocate device memory device_input = cuda.mem_alloc(host_input.nbytes) device_output = cuda.mem_alloc(host_output.nbytes) # 4. Create a CUDA Stream stream = cuda.Stream() # 5. Preprocess Input Data (Example with a dummy image) # In a real application, you would load and preprocess an image here. # For simplicity, we use random data. np.copyto(host_input, np.random.rand(1, 3, 224, 224).astype(np.float32)) # 6. Run Inference # Transfer input data from host to device (GPU) cuda.memcpy_htod_async(device_input, host_input, stream) # Set up bindings context.set_tensor_address('input', int(device_input)) context.set_tensor_address('output', int(device_output)) # Execute the inference context.execute_async_v3(stream_handle=stream.handle) # Transfer output data from device to host cuda.memcpy_dtoh_async(host_output, device_output, stream) # Synchronize the stream to wait for the completion of all operations stream.synchronize() # 7. Post-process and Print Results # The host_output now contains the model's predictions. print("Inference successful. Output shape:", host_output.shape) # In a real app, you would apply softmax and map to class labels. predicted_class = np.argmax(host_output) print("Predicted class index:", predicted_class)
Part 3: Mastering Advanced Optimization Techniques
With the fundamental workflow established, we now explore the advanced features that unlock the full potential of TensorRT: precision reduction, graph optimizations, and dynamic shapes.
Section 5: Precision Engineering: The Art of FP16 and INT8 Quantization
One of the most significant sources of performance gain on modern NVIDIA GPUs comes from leveraging specialized hardware units called Tensor Cores. These cores provide immense computational throughput for lower-precision mathematical operations, specifically FP16 and INT8.
FP16 Precision: The Easy Win Half-precision floating-point (FP16) offers a substantial speedup over FP32 with often negligible impact on model accuracy. Enabling FP16 mode in TensorRT is a simple one-line change in the builder configuration.
Python
# In the engine-building script from Section 3, Step 6:
config = builder.create_builder_config()
...
# Enable FP16 mode
if builder.platform_has_fast_fp16:
config.set_flag(trt.BuilderFlag.FP16)
INT8 Quantization: The Ultimate Speedup For the highest possible throughput, TensorRT supports 8-bit integer (INT8) quantization. This technique dramatically reduces memory bandwidth requirements and fully utilizes the power of Tensor Cores. However, converting a model from 32-bit floating-point to 8-bit integers can cause a significant loss of accuracy if not done carefully. TensorRT addresses this with a process called Post-Training Quantization (PTQ), which uses a calibration step to find the optimal mapping from FP32 to INT8 values.
The Calibration Process Explained Calibration is the process where TensorRT learns the distribution of activation values within your network. It does this by running a small, representative subset of your training or validation data through the model and measuring the dynamic range of each tensor. With this information, it calculates a scaling factor for each tensor that maps its typical FP32 range to the
[-128, 127] range of INT8, minimizing the loss of information (quantization error).
To implement this, the developer must provide a calibrator class that inherits from trt.IInt8Calibrator. This class is responsible for feeding the calibration data to TensorRT during the build phase. The key methods to implement are :
get_batch_size(): Returns the batch size of the calibration data.get_batch(): This method is called repeatedly by TensorRT to get batches of data. Its job is to load a batch, copy it to a pre-allocated GPU buffer, and return a list of pointers to the device memory.write_calibration_cache()andread_calibration_cache(): These optional but highly recommended methods allow you to save the generated calibration table to a file. On subsequent builds, TensorRT can read this cache instead of re-running the entire calibration process, saving significant time.
Code-Heavy Tutorial: INT8 Calibration in Python The following example provides a generic calibrator class that can be used with a PyTorch DataLoader.
Python
import tensorrt as trt
import pycuda.driver as cuda
import pycuda.autoinit
import numpy as np
import os
class Calibrator(trt.IInt8EntropyCalibrator2):
def __init__(self, training_data, cache_file, batch_size=64):
trt.IInt8EntropyCalibrator2.__init__(self)
self.cache_file = cache_file
self.data = training_data # This should be a DataLoader or similar iterable
self.batch_size = batch_size
self.current_index = 0
# Allocate GPU memory for a single batch
self.device_input = cuda.mem_alloc(self.data.dataset.nbytes * self.batch_size)
# Create a generator to yield batches
self.batches = self.load_batches()
def get_batch_size(self):
return self.batch_size
def load_batches(self):
for i, (images, _) in enumerate(self.data):
# Assuming images are numpy arrays
yield images.numpy()
def get_batch(self, names):
try:
# Get the next batch
batch_data = next(self.batches)
# Copy to GPU
cuda.memcpy_htod(self.device_input, batch_data)
return [int(self.device_input)]
except StopIteration:
# No more batches
return None
def read_calibration_cache(self):
# If there is a cache, use it
if os.path.exists(self.cache_file):
with open(self.cache_file, "rb") as f:
return f.read()
def write_calibration_cache(self, cache):
# Save the cache for later use
with open(self.cache_file, "wb") as f:
f.write(cache)
# --- In your engine-building script ---
# Assume `train_loader` is a PyTorch DataLoader with your calibration data
# config = builder.create_builder_config()
#...
# config.set_flag(trt.BuilderFlag.INT8)
# int8_calibrator = Calibrator(train_loader, "calibration.cache", batch_size=32)
# config.int8_calibrator = int8_calibrator
This class provides a reusable template for INT8 calibration. You would integrate this into the build script from Section 3, setting the INT8 flag and assigning an instance of this calibrator to the builder configuration.
Section 6: Unlocking Peak Performance: Fusion, Tuning, and Dynamic Shapes
Beyond precision, TensorRT employs several other automatic optimizations to maximize performance.
Graph Optimization Deep Dive: Layer and Tensor Fusion Layer fusion is a critical optimization where TensorRT combines multiple individual layers into a single, optimized kernel. This reduces the overhead of launching multiple kernels and minimizes data movement between the GPU's global memory and its on-chip resources. There are two primary types of fusion:
Vertical Fusion: This merges sequential layers. A classic example is fusing a
Convolutionlayer, aBiasaddition, and aReLUactivation into a single "CBR" kernel. Instead of writing intermediate results back to global memory after each step, the entire sequence is computed using fast on-chip registers and shared memory.Horizontal Fusion: This combines layers that share the same input tensor and perform similar operations. By creating a single, wider kernel, TensorRT can improve computational efficiency and parallelism.
While fusion is an automatic process, understanding its existence is key to interpreting performance profiles. A profiler trace of a TensorRT engine will often show fewer, larger kernels than the original model definition, which is a direct result of successful fusion.
Kernel Auto-Tuning For many common operations like convolution, TensorRT has a library of different kernel implementations, each optimized for different data types, filter sizes, and hardware architectures. During the offline build phase, TensorRT benchmarks these different kernels with the specific parameters of your model on your target GPU. It then selects the fastest implementation for inclusion in the final engine. This is why a TensorRT engine is highly specific to the GPU it was built on and the TensorRT version used.
Handling Real-World Data: Dynamic Shapes By default, TensorRT builds an engine optimized for a fixed input shape. However, many real-world applications require processing inputs of varying sizes, such as images of different resolutions or text sequences of different lengths. TensorRT handles this through Optimization Profiles.
An IOptimizationProfile allows the developer to specify the valid range of dimensions for each dynamic input. You must define three configurations for each dynamic tensor:
Minimum: The smallest possible dimensions.
Optimal: The dimensions the model will most frequently encounter. TensorRT uses this shape for its kernel auto-tuning process.
Maximum: The largest possible dimensions.
Hands-On Example: Dynamic Batch Size We can modify our ResNet-50 build script to support a dynamic batch size.
Python
# In the engine-building script...
# 1. Create an optimization profile
profile = builder.create_optimization_profile()
# 2. Define the min, opt, and max shapes for the input tensor
# Here, we make the batch dimension (axis 0) dynamic.
profile.set_shape("input", min=(1, 3, 224, 224), opt=(8, 3, 224, 224), max=(16, 3, 224, 224))
# 3. Add the profile to the builder configuration
config.add_optimization_profile(profile)
#... continue with building the engine
# --- During runtime ---
# context = engine.create_execution_context()
# You must set the input shape before running inference
# The shape must be within the min/max bounds of the profile
context.set_input_shape("input", (4, 3, 224, 224))
#... continue with setting bindings and executing inference
This allows a single engine to efficiently handle different batch sizes at runtime, providing crucial flexibility for production deployment.
Part 4: Capstone Project: Building a Real-Time YOLOv8 Video Analytics Pipeline
This capstone project synthesizes all the concepts learned into a practical, real-world application. The goal is to take a state-of-the-art YOLOv8 object detection model and build a high-performance inference pipeline capable of processing video streams in real time. This project will not only test your ability to use the TensorRT API but also your understanding of the performance-accuracy trade-offs inherent in model optimization.
Section 7: Project Blueprint: Optimizing YOLOv8 for Real-Time Detection
Project Goal: The objective is to convert a pre-trained YOLOv8 model from its native PyTorch format into an optimized TensorRT engine, testing FP32, FP16, and INT8 precisions. We will then build a Python application to run this engine on a video file, measuring its performance (FPS) and validating its accuracy (mAP) against the original model.
Setup and Prerequisites:
YOLOv8 Model: Download a pre-trained YOLOv8 model from the official Ultralytics repository, such as
yolov8n.pt.COCO Dataset: Download the COCO 2017 validation dataset. This dataset is essential for two purposes: it will provide the representative images needed for INT8 calibration, and it will serve as the ground truth for calculating the model's mAP accuracy.
Section 8: Implementation and Benchmarking
Step 1: Export YOLOv8 to ONNX The first step is to convert the PyTorch model to the ONNX format. The ultralytics library provides a simple export function. It is crucial to handle dynamic axes correctly to allow for variable batch sizes during inference.
Python
from ultralytics import YOLO
# Load the pretrained YOLOv8 model
model = YOLO("yolov8n.pt")
# Export the model to ONNX format with dynamic axes
model.export(format="onnx", dynamic=True)
Step 2: Rapid Benchmarking with trtexec Before writing any custom runtime code, we can get a quick performance baseline using the trtexec command-line utility. This tool is included with the TensorRT installation and is invaluable for quick experiments.
Bash
# Build and benchmark an FP16 engine from the ONNX file
trtexec --onnx=yolov8n.onnx --saveEngine=yolov8n_fp16.engine --fp16
# Build and benchmark an FP32 engine
trtexec --onnx=yolov8n.onnx --saveEngine=yolov8n_fp32.engine
This will build the engines and output detailed performance metrics, including latency and throughput, giving an initial sense of the achievable speedup.
Step 3: Building the INT8 Engine with a Custom Calibrator This is the most challenging and rewarding part of the project. We will implement a custom IInt8Calibrator class tailored for the YOLOv8 model and the COCO dataset.
Python
import tensorrt as trt
import pycuda.driver as cuda
import pycuda.autoinit
import numpy as np
import os
from PIL import Image
import glob
class YOLOv8Calibrator(trt.IInt8EntropyCalibrator2):
def __init__(self, calibration_image_dir, cache_file, input_shape=(1, 3, 640, 640), batch_size=1):
trt.IInt8EntropyCalibrator2.__init__(self)
self.cache_file = cache_file
self.batch_size = batch_size
self.input_shape = input_shape
# Get a list of calibration images
self.image_paths = glob.glob(os.path.join(calibration_image_dir, "*.jpg"))
self.num_images = len(self.image_paths)
self.batch_generator = self.load_batches()
# Allocate GPU memory for a batch
self.device_input = cuda.mem_alloc(np.zeros(self.input_shape, dtype=np.float32).nbytes * self.batch_size)
def get_batch_size(self):
return self.batch_size
def preprocess_image(self, img_path):
# YOLOv8 preprocessing: resize to 640x640, normalize to , CHW format
img = Image.open(img_path).convert('RGB')
img = img.resize((self.input_shape[1], self.input_shape[2]), Image.LANCZOS)
img = np.array(img, dtype=np.float32) / 255.0
img = np.transpose(img, (2, 0, 1)) # HWC to CHW
img = np.expand_dims(img, axis=0) # Add batch dimension
return np.ascontiguousarray(img)
def load_batches(self):
for i in range(0, self.num_images, self.batch_size):
batch_imgs =
end = min(i + self.batch_size, self.num_images)
for j in range(i, end):
img = self.preprocess_image(self.image_paths[j])
batch_imgs.append(img)
yield np.concatenate(batch_imgs, axis=0)
def get_batch(self, names):
try:
batch = next(self.batch_generator)
cuda.memcpy_htod(self.device_input, batch)
return [int(self.device_input)]
except StopIteration:
return None
def read_calibration_cache(self):
if os.path.exists(self.cache_file):
with open(self.cache_file, "rb") as f:
return f.read()
def write_calibration_cache(self, cache):
with open(self.cache_file, "wb") as f:
f.write(cache)
This calibrator correctly loads images from the COCO validation set, applies the necessary preprocessing, and provides them to TensorRT in a GPU buffer. You would then use this class in your build script to generate the
yolov8n_int8.engine.
Step 4: The Inference Pipeline Application The final application will be a Python script that uses OpenCV to read frames from a video file. For each frame, it will:
Preprocess the frame (resize, normalize, etc.) to match the model's input requirements.
Run inference using the selected TensorRT engine (
FP32,FP16, orINT8).Perform post-processing on the raw output tensor. This is a non-trivial step for YOLO models and involves decoding the output tensor to get bounding box coordinates, class probabilities, and confidence scores, followed by Non-Maximum Suppression (NMS) to filter out overlapping detections.
Draw the final bounding boxes on the video frame.
Display the processed video and calculate the running average FPS.

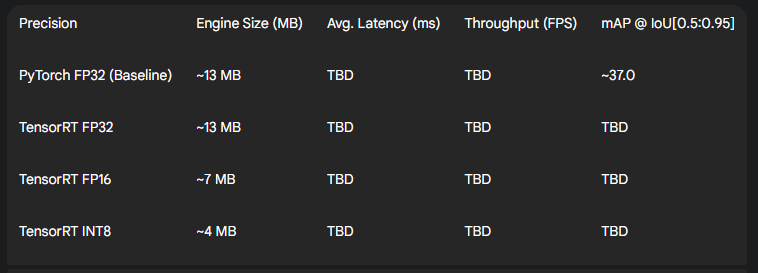

Section 9: Validation and Analysis: Quantifying Success
Performance metrics like FPS are only half the story. A 1000 FPS model is useless if its accuracy is zero. Therefore, validating the accuracy of the optimized engines is a mandatory step. The standard metric for object detection is mean Average Precision (mAP).
Using pycocotools for mAP Calculation To validate our engines, we will write a Python script that performs the following steps :
Iterate through the entire COCO 2017 validation set.
For each image, run inference using one of our generated TensorRT engines (FP32, FP16, INT8).
Collect all predictions (bounding boxes, scores, and class IDs) from the model.
Format these predictions into the standard COCO JSON results format.
Use the
pycocotoolslibrary to load the ground truth annotation file and our prediction JSON file.The
COCOevalclass frompycocotoolswill then compute the official mAP score at various IoU (Intersection over Union) thresholds.
Presenting the Results The final output of the capstone project will be a populated version of the following table, which clearly demonstrates the trade-offs between precision, performance, and accuracy.
Key Table: YOLOv8 Optimization Results on COCO Val 2017
The results in this table will powerfully illustrate the value of TensorRT. We expect to see that TensorRT FP32 provides a modest speedup over the PyTorch baseline due to layer fusion and kernel tuning. FP16 will offer a more significant performance boost with a very small, often negligible, drop in mAP. INT8 will deliver the highest throughput, but its accuracy is critically dependent on the quality of the calibration data. A poorly implemented calibrator can lead to a "performance cliff," where the accuracy drops dramatically, rendering the model ineffective. Successfully building an INT8 engine that maintains high mAP demonstrates a true mastery of accuracy-aware performance optimization.
Section 10: Next Steps: Extending the Model with the Plugin API
A common challenge in production is encountering a model with a custom or novel operation that TensorRT's ONNX parser does not natively support. In such cases, TensorRT does not fail; instead, it provides the Plugin API for developers to implement these custom layers themselves.
This involves writing a custom CUDA kernel for the layer's forward pass and wrapping it in a C++ class that inherits from TensorRT's IPluginV3 and IPluginCreatorV3One interfaces. This plugin can then be registered with TensorRT and used seamlessly during the network build process. While implementing custom plugins is an advanced topic beyond the scope of this guide, it represents the path to full mastery. Excellent resources for this next step include the official TensorRT open-source plugin repository on GitHub and the
sampleOnnxMNIST example in the SDK, which demonstrates how to use a plugin for the Leaky ReLU operation.
Part 5: Production and Conclusion
This final part connects the optimized engine to production-level systems and summarizes the key skills acquired.
Section 11: From Engine to Enterprise: Deploying with Triton and DeepStream
The optimized .engine file created in this guide is a powerful, self-contained artifact, but it is not a full production solution. Real-world systems require robust frameworks for serving and pipeline management.
Scaling Up with NVIDIA Triton Inference Server: The TensorRT engine we built can be directly deployed using Triton. This involves creating a specific "model repository" directory structure and a
config.pbtxtfile that tells Triton about the model's inputs, outputs, and backend (tensorrt). Triton then handles the complexities of production serving, including creating HTTP/gRPC endpoints, managing concurrent requests with dynamic batching, and even loading multiple instances of the same model to maximize GPU utilization.Building Video Pipelines with NVIDIA DeepStream: For video analytics, the engine can be integrated into a DeepStream pipeline. DeepStream is a GStreamer-based SDK for building complex, hardware-accelerated video processing applications. Our YOLOv8 engine would function as the primary inference plugin (
nvinfer), receiving pre-processed video frames from upstream elements and passing metadata (bounding boxes) to downstream elements like trackers and on-screen display renderers.
This demonstrates that a TensorRT engine is a critical component within a larger system. Understanding where it fits is the final step in transitioning from a model optimizer to an ML systems engineer.
Section 12: Your Path Forward in High-Performance AI
This guide has provided a comprehensive journey into the world of high-performance inference with NVIDIA TensorRT. Starting from the fundamental challenges of latency and throughput, we have progressed through the core Python workflow for building and running optimized engines. We have mastered advanced techniques like FP16 and INT8 quantization and dynamic shapes. The capstone project, optimizing and validating a real-time YOLOv8 pipeline, has solidified these skills in a practical, industry-relevant context.
The path forward is rich with possibilities. One immediate area for further exploration is hardware-aware sparsity, where techniques like NVIDIA's 2:4 structured sparsity can be combined with TensorRT to achieve even greater acceleration by pruning redundant model weights in a hardware-friendly pattern. As models continue to grow in complexity, the ability to co-optimize for precision, sparsity, and architecture will be the defining skill of the next generation of AI performance engineers.
Curated Resources for Continued Learning:
Official Documentation: The(https://docs.nvidia.com/deeplearning/tensorrt/latest/developer-guide/index.html) is the definitive source for all API details.
GitHub Samples: The(https://github.com/NVIDIA/TensorRT/tree/main/samples) repository is an invaluable resource for practical examples, including the implementation of custom plugins.
NVIDIA GTC Talks: Sessions from NVIDIA's GPU Technology Conference often feature deep dives into the latest TensorRT features and best practices from NVIDIA's own engineers.
