ONNX Explained

The Ultimate Guide to Universal Model Deployment & MLOps

Are your incredible ML models stuck in one framework, slow to deploy, and impossible to scale? While you're wrestling with compatibility issues, top engineers are shipping models that run anywhere at peak performance. Don't get left behind in the old way of doing MLOps! This video is your one-stop guide to mastering the ONNX ecosystem—the secret to universal, high-speed model deployment. Watch now, or watch your projects fall behind.

Introduction: Beyond the Basics of Model Compression

In the landscape of production machine learning, deploying a model is only the first step. The true challenge lies in making that model efficient, fast, and scalable. Model quantization stands as a cornerstone technique in this pursuit, offering a path to dramatically improve inference performance and reduce the memory footprint of neural networks. However, moving beyond a superficial understanding of quantization reveals a domain of deep complexity and nuanced trade-offs. This guide is crafted for the developer who has moved past introductory concepts and now seeks to master the advanced skills required to navigate these complexities and unlock the full potential of model optimization.

At its heart, quantization is the process of transforming a model's parameters—primarily its weights and the activations that flow through it—from high-precision representations, such as 32-bit floating-point (FP32), to lower-precision formats, most commonly 8-bit integers (INT8). The benefits are immediate and compelling: a potential 4x reduction in model size, significantly lower memory bandwidth requirements, and faster computations on hardware equipped with specialized integer arithmetic units. These advantages are critical for deploying models on a diverse spectrum of hardware, from powerful cloud-based GPUs to resource-constrained edge devices like mobile phones and IoT sensors.

The journey to mastery, however, is defined by a core challenge: a three-way trade-off between inference speed, model accuracy, and deployment efficiency (memory usage, binary size). A naive application of quantization can lead to a catastrophic drop in model accuracy, rendering the optimized model useless. The art of advanced quantization lies in employing sophisticated techniques to minimize this accuracy degradation while maximizing performance gains. This requires a deep, practical understanding of the underlying mechanics and a strategic approach to problem-solving.

To navigate this landscape, we will ground our exploration in a powerful and industry-standard toolkit:

• PyTorch: As our primary framework, PyTorch provides the flexibility and control necessary for defining, training, and, most importantly, implementing advanced quantization strategies like Quantization-Aware Training (QAT). Its rich ecosystem and imperative nature make it an ideal environment for both research and production engineering.

• ONNX (Open Neural Network Exchange): We will leverage ONNX as the universal standard for model interoperability. ONNX acts as a crucial bridge, allowing us to decouple our model, trained in PyTorch, from the specific runtime environment where it will be deployed. An ONNX model is fundamentally a computational graph composed of nodes (which represent operators like

  Conv or MatMul), inputs, outputs, and initializers (which store constant values like trained weights). This graph structure provides a standardized language for describing machine learning models.

• ONNX Runtime: This will be our high-performance inference engine. ONNX Runtime is far more than a simple model executor; it is an optimization powerhouse. It features a sophisticated graph optimizer and a flexible Execution Provider (EP) architecture, which allows it to target and accelerate inference on specific hardware backends, including CPUs, NVIDIA GPUs (via CUDA and TensorRT EPs), and many others. Crucially for this guide, ONNX Runtime also provides a comprehensive suite of tools for performing both Post-Training Quantization (PTQ) and executing models quantized through QAT.

This guide will take you on a structured journey from mastering the intricacies of PTQ to implementing a full QAT workflow, and finally to exploring the frontiers of sub-8-bit quantization. We will culminate this journey with a capstone project: rescuing a quantization-sensitive Vision Transformer, a task that will put your newly acquired advanced skills to a real-world test.

Part I: Mastering Post-Training Quantization (PTQ)

Post-Training Quantization (PTQ) encompasses a family of techniques applied to a model that has already been fully trained. It represents the most direct and fastest path to obtaining a quantized model, as it does not require retraining or access to the original training pipeline. However, its simplicity belies a significant challenge: preserving accuracy without the model's ability to adapt. Mastery of PTQ involves understanding its two main paradigms—Dynamic and Static—and the advanced techniques required to make them effective.

Section 1: The Two Paradigms of PTQ: Dynamic vs. Static

The fundamental difference between dynamic and static quantization lies in how they handle the quantization of activation tensors—the data that flows between the layers of the model during inference.

Deep Dive: Post-Training Dynamic Quantization (PTQ-D)

Concept: In dynamic quantization, a model's weights are analyzed and converted to a lower-precision format (e.g., INT8) offline, before deployment. The activations, however, are treated differently. During each inference pass, their range (minimum and maximum values) is observed "on-the-fly," and the necessary quantization parameters (scale and zero-point) are calculated dynamically just before a quantized operation is executed.

Pros & Cons: The primary advantage of PTQ-D is its simplicity. It does not require a calibration dataset, making it a "plug-and-play" solution that can be applied to any trained model with minimal setup. This makes it highly robust to variations in activation distributions across different inputs. The main drawback is the computational overhead incurred during inference. The dynamic calculation of scale and zero-point for activations adds a small but non-negligible latency to each forward pass, which can be a limiting factor in highly latency-sensitive applications.

Ideal Use Case: PTQ-D is generally recommended for models where activations exhibit highly variable and unpredictable ranges, making them difficult to calibrate effectively. This is a common characteristic of models with gating mechanisms or complex recurrent structures, such as Transformers (e.g., BERT) and RNNs (e.g., LSTMs, GRUs).

Code Walkthrough: Applying dynamic quantization with ONNX Runtime is remarkably straightforward. The onnxruntime.quantization.quantize_dynamic function handles the entire process.

import onnx
from onnxruntime.quantization import quantize_dynamic, QuantType

# Define file paths
model_fp32_path = 'path/to/your/fp32_model.onnx'
model_quant_dynamic_path = 'path/to/your/dynamic_quantized_model.onnx'

# Perform dynamic quantization
quantize_dynamic(
    model_input=model_fp32_path,
    model_output=model_quant_dynamic_path,
    weight_type=QuantType.QInt8  # Specifies that weights should be quantized to signed 8-bit integers
)

print(f"Original FP32 model size: {os.path.getsize(model_fp32_path) / (1024*1024):.2f} MB")
print(f"Dynamically quantized model size: {os.path.getsize(model_quant_dynamic_path) / (1024*1024):.2f} MB")

This script takes a full-precision ONNX model and produces a new ONNX model where the weights of operators like MatMul and Conv are stored as INT8, ready for accelerated execution.

Deep Dive: Post-Training Static Quantization (PTQ-S)

Concept: Static quantization takes a more comprehensive approach by quantizing both the model's weights and its activations offline. To quantize the activations, a crucial extra step called calibration is required. During calibration, a small but representative dataset (typically 100-1000 samples) is passed through the model. Observers placed at various points in the graph collect statistics on the ranges of the activation tensors. These statistics are then used to calculate fixed, static quantization parameters for the activations, which are embedded directly into the model graph.

Pros & Cons: The primary benefit of PTQ-S is performance. By pre-calculating all quantization parameters, it eliminates the runtime overhead associated with dynamic quantization, resulting in the fastest possible inference speed for a quantized model. The significant drawback is its heavy reliance on the calibration dataset. If the calibration data is not statistically representative of the data the model will encounter in production, the fixed quantization parameters will be suboptimal, leading to a potentially severe degradation in accuracy.

Ideal Use Case: PTQ-S is the preferred method for latency-critical applications, especially on edge devices. It is most effective for models with relatively stable activation distributions, a characteristic often found in Convolutional Neural Networks (CNNs) used for computer vision tasks.

Code Walkthrough: Implementing PTQ-S involves more setup than its dynamic counterpart, primarily centered around providing the calibration data. This is done by creating a custom data reader class that inherits from onnxruntime.quantization.CalibrationDataReader.

import onnx
import numpy as np
from onnxruntime.quantization import quantize_static, QuantType, CalibrationDataReader

# Step 1: Create a Calibration Data Reader
class MyCalibrationDataReader(CalibrationDataReader):
    def __init__(self, calibration_data_path, model_path, batch_size=1):
        self.model_path = model_path
        # In a real scenario, load your calibration data (e.g., images) here
        # For this example, we'll use random data
        self.calibration_data = [np.random.rand(batch_size, 3, 224, 224).astype(np.float32) for _ in range(100)]

        # Create an iterator for the data
        self.data_iterator = iter(self.calibration_data)

        # Get input name from the model
        session = onnxruntime.InferenceSession(model_path, providers=['CPUExecutionProvider'])
        self.input_name = session.get_inputs().name

    def get_next(self):
        # Return the next batch of calibration data
        batch = next(self.data_iterator, None)
        if batch is not None:
            return {self.input_name: batch}
        else:
            return None

# Define file paths
model_fp32_path = 'path/to/your/fp32_model.onnx'
model_quant_static_path = 'path/to/your/static_quantized_model.onnx'
calibration_data_path = 'path/to/calibration/data' # Dummy path for this example

# Step 2: Instantiate the data reader
calibration_data_reader = MyCalibrationDataReader(calibration_data_path, model_fp32_path)

# Step 3: Perform static quantization
quantize_static(
    model_input=model_fp32_path,
    model_output=model_quant_static_path,
    calibration_data_reader=calibration_data_reader,
    activation_type=QuantType.QInt8,  # Quantize activations to signed 8-bit integers
    weight_type=QuantType.QInt8       # Quantize weights to signed 8-bit integers
)

print(f"Original FP32 model size: {os.path.getsize(model_fp32_path) / (1024*1024):.2f} MB")
print(f"Statically quantized model size: {os.path.getsize(model_quant_static_path) / (1024*1024):.2f} MB")

This process generates a fully quantized ONNX model where both weights and activation paths have been optimized for high-speed integer arithmetic.

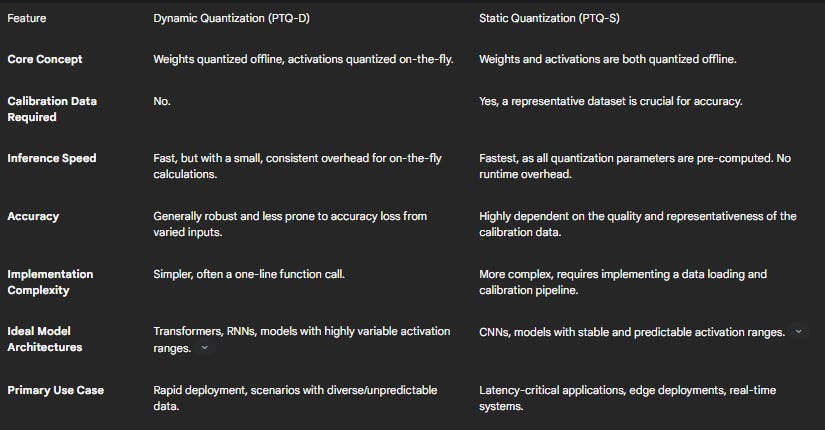

The choice between dynamic and static quantization is often presented as a decision based on model architecture—RNNs for dynamic, CNNs for static. While this is a useful heuristic, it masks a more fundamental engineering trade-off. Dynamic quantization offloads the complexity of handling activation ranges to the runtime, accepting a minor latency penalty on every inference call in exchange for simplicity and robustness. Static quantization, conversely, shifts this complexity entirely to the developer in an offline "calibration" phase. The developer must source or create a representative dataset and implement the data reader pipeline. The reward for this upfront effort is the elimination of the runtime overhead, achieving the lowest possible latency.

Therefore, the decision is less about the model's architecture and more about the application's constraints. For a cloud-based service where throughput is key and a minor latency increase per request is acceptable, or where the input data is incredibly diverse and hard to represent, dynamic quantization is a pragmatic and effective choice. For a real-time application deployed on an edge device with strict latency budgets, the upfront investment in static quantization and calibration is not just beneficial, it is often mandatory.

Section 2: The Art of Calibration: Advanced Techniques for Static Quantization

The success of Post-Training Static Quantization (PTQ-S) hinges almost entirely on the quality of its calibration. The goal of calibration is to determine the optimal quantization parameters—scale and zero_point—for each activation tensor in the model. A naive approach can be easily defeated by a common statistical foe: outliers.

The core problem arises from how the scale factor is calculated. For a given tensor, the scale maps its range of floating-point values to the limited integer range (e.g., -128 to 127 for INT8). If the range is determined by the absolute minimum and maximum values in the calibration data, a single extreme outlier can drastically widen this range. This forces the scale factor to become very large, dedicating the majority of the precious integer "bins" to representing these rare outlier values. Consequently, the vast majority of the "normal" data points are "crushed" into a very small portion of the integer range, leading to a massive loss of resolution and a significant drop in model accuracy.

Advanced calibration methods are, in essence, sophisticated statistical techniques for managing this outlier problem. They seek to find a more representative, "true" range for the data, ignoring the noise at the extremes.

A Comparative Study of Calibration Methods

ONNX Runtime and other quantization toolkits provide several algorithms to determine the quantization range during calibration:

• MinMax: This is the most basic and intuitive method. It simply records the absolute minimum and maximum values observed for a tensor across the entire calibration dataset and uses them as the quantization range. While simple and fast, it is extremely sensitive to outliers and is often the cause of poor PTQ accuracy.

• Entropy (KL-Divergence): This is a more theoretically grounded approach. It treats the original FP32 activation values and the quantized INT8 values as two distinct probability distributions. The goal is to find a clipping range for the FP32 values that minimizes the information loss after quantization. This is measured using the Kullback-Leibler (KL) divergence, which quantifies how one probability distribution differs from a reference distribution. By iteratively testing different clipping ranges and choosing the one that results in the lowest KL divergence, this method often preserves the overall shape and information content of the original distribution much better than MinMax, leading to higher accuracy.

• Percentile: This method offers a robust and highly practical solution to the outlier problem. Instead of using the absolute min/max, it uses a percentile of the data's distribution to set the clipping range. For example, using the 99.99th percentile means that the top 0.01% of the most extreme values are deliberately ignored when determining the range. This provides a direct and effective way to discard outliers, often yielding a much better balance between quantization range and resolution. This technique is a good compromise between the speed of MinMax and the potential accuracy of Entropy. A production-grade application of this concept is seen in NVIDIA's "Percentile Quant" method, which uses a similar strategy to quantize diffusion models effectively.

• Mean Squared Error (MSE): This method also searches for an optimal clipping range, but its objective function is to minimize the Mean Squared Error (MSE) between the original FP32 tensor values and their quantized-dequantized counterparts. It directly optimizes for numerical similarity, which can also lead to good accuracy results.

Code Walkthrough: Selecting Calibration Methods

In ONNX Runtime, you can specify the calibration method via the quantize_static function. The choice of calibration method is a critical hyperparameter in the PTQ-S process.

from onnxruntime.quantization import quantize_static, QuantType, CalibrationMethod

#... (assuming MyCalibrationDataReader and file paths are defined as before)...

# Instantiate the data reader
calibration_data_reader = MyCalibrationDataReader(calibration_data_path, model_fp32_path)

# Perform static quantization using the Entropy (KL-Divergence) method
quantize_static(
    model_input=model_fp32_path,
    model_output='path/to/your/static_quantized_entropy.onnx',
    calibration_data_reader=calibration_data_reader,
    quant_format=QuantFormat.QDQ, # Use the modern QDQ format
    activation_type=QuantType.QInt8,
    weight_type=QuantType.QInt8,
    calibrate_method=CalibrationMethod.Entropy # Specify the calibration method
)

# Perform static quantization using the Percentile method
quantize_static(
    model_input=model_fp32_path,
    model_output='path/to/your/static_quantized_percentile.onnx',
    calibration_data_reader=calibration_data_reader,
    quant_format=QuantFormat.QDQ,
    activation_type=QuantType.QInt8,
    weight_type=QuantType.QInt8,
    calibrate_method=CalibrationMethod.Percentile, # Specify the calibration method
    extra_options={'ActivationSymmetric': True, 'CalibMovingAverage': True, 'CalibPercentile': 99.99} # Example extra options
)

By experimenting with these different methods, a developer can often "rescue" a model that performs poorly with the default MinMax calibration.

The selection of a calibration method should not be a blind choice. It is a data-driven decision based on an understanding of the statistical properties of the model's activations. The various methods—MinMax, Entropy, Percentile, MSE—are fundamentally different statistical strategies for answering the same question: "What is the true, representative range of this tensor's values, once we account for noise and outliers?". MinMax operates on the naive assumption that there are no outliers. Percentile makes a hard, explicit decision to define a certain fraction of the data as outliers and discard them. Entropy (KL-Divergence) takes a "softer," information-theoretic approach, seeking a range that best preserves the overall probability distribution of the original values. Therefore, if an analysis of the activation distributions reveals clean, well-behaved data, MinMax may suffice. More commonly, distributions will have long tails, making Percentile or Entropy necessary tools to achieve acceptable accuracy. This transforms the choice of calibration method from a black-box hyperparameter into a deliberate, informed engineering decision.

Section 3: Granularity and Symmetry: Fine-Tuning the Quantization Scheme

Beyond choosing a calibration method, two other critical and orthogonal dimensions of quantization strategy are symmetry and granularity. These choices determine how the quantization parameters are calculated and applied, and they can have a significant impact on both accuracy and hardware performance.

The core quantization mapping is defined by the linear equation: real_value=scale∗(quantized_value−zero_point).

The choices of symmetry and granularity directly affect the calculation of the scale and zero_point parameters.

Symmetric vs. Asymmetric Quantization

• Concept: This choice determines how the floating-point range is mapped to the integer range.

  • Symmetric Quantization: The floating-point range is centered around zero. For example, if the maximum absolute value observed is M, the range is set to [-M, M]. This range is then mapped to the integer range (e.g., [-127, 127] for signed INT8). A key characteristic of symmetric quantization is that the floating-point value 0.0 always maps perfectly to the integer value 0, so the zero_point is fixed at 0. This simplifies the quantization arithmetic and can be more efficient on hardware with optimized kernels for symmetric operations.

  • Asymmetric Quantization: The floating-point range is defined by the actual observed minimum and maximum values, [min_val, max_val]. This range is mapped to the full integer range (e.g., `` for unsigned UINT8 or [-128, 127] for signed INT8). Because the range is not necessarily centered around zero, a non-zero zero_point is required to ensure that the floating-point value 0.0 can be represented exactly. This scheme offers more flexibility and can represent skewed (non-symmetric) data distributions with higher fidelity, as it doesn't "waste" part of the integer range on values that never occur.

Per-Tensor vs. Per-Channel Quantization

• Concept: This choice defines the granularity at which the scale and zero_point parameters are computed for a given tensor.

  • Per-Tensor (or Per-Layer) Quantization: A single scale and zero_point pair is calculated for the entire weight or activation tensor. This is the simplest approach but can be inaccurate if the distribution of values varies significantly across different parts of the tensor. For example, in a convolutional layer, some output channels (filters) might have weights with a large range, while others have a very small range. A single set of quantization parameters for the whole layer would be a poor compromise for both.

  • Per-Channel (or Per-Axis) Quantization: A separate scale and zero_point pair is calculated for each individual channel along a specified axis (typically the output channel axis for Conv and Linear layer weights). This allows the quantization to adapt to the unique statistical properties of each filter or neuron, almost always resulting in significantly higher accuracy for weight quantization.

The choices of symmetry and granularity are not mutually exclusive; they are orthogonal decisions that form a decision matrix. An advanced developer must consider this matrix to devise an optimal quantization strategy, as the best combination often depends on the type of tensor being quantized (weights vs. activations), the operations in the model, and the capabilities of the target hardware.

For instance, the weights of a convolutional layer are a prime candidate for per-channel quantization, as the distributions of different filters can vary dramatically. The choice between symmetric and asymmetric for these weights often comes down to hardware support, with symmetric being potentially faster if specialized kernels exist. In contrast, activations are typically quantized on a per-tensor basis. Here, the choice of symmetry is critical. An activation tensor following a ReLU function will have only non-negative values. Using asymmetric quantization (e.g., with UINT8 mapping to ``) is far more efficient, as it uses the entire quantized range to represent the possible values. A symmetric scheme would waste half its range on negative numbers that will never appear. Conversely, for an activation following a tanh function, whose output is naturally symmetric around zero, symmetric quantization is a perfect fit.

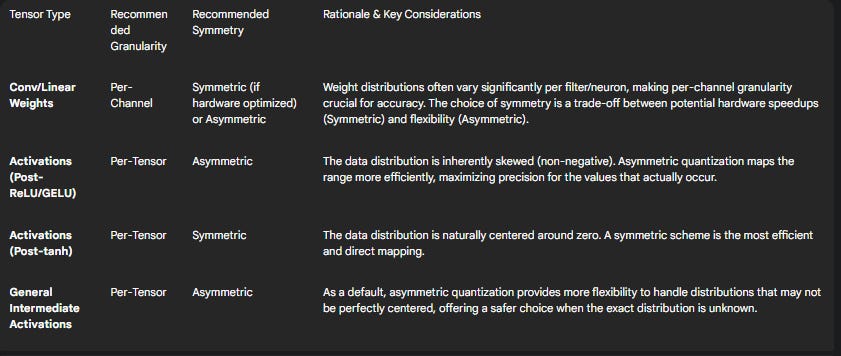

This leads to a practical decision-making framework:

Part II: Achieving Peak Accuracy with Quantization-Aware Training (QAT)

While Post-Training Quantization (PTQ) offers a fast path to optimization, there are scenarios where even the most advanced PTQ techniques fail to meet the required accuracy targets. This is particularly true for models that are highly sensitive to precision loss or when targeting very low bit-widths (e.g., INT4). In these cases, we turn to the most powerful tool in our arsenal: Quantization-Aware Training (QAT).

Section 4: When PTQ Fails: The Rationale for QAT

The Core Concept: QAT fundamentally changes the optimization paradigm. Instead of treating the trained model as a fixed entity, QAT introduces the effects of quantization during the training or fine-tuning process. By simulating the noise and rounding errors inherent in low-precision arithmetic throughout training, QAT allows the model's weights to learn and adapt, finding a final state that is inherently robust to these effects.

Anatomy of QAT in PyTorch: Fake Quantization

A common misconception is that QAT performs training using actual integer arithmetic. This is not the case. The entire training process, including the backward pass and gradient updates, remains in high-precision floating-point. The "awareness" is achieved by inserting special nodes into the model graph called "Fake Quantize" nodes (in PyTorch's Eager Mode API, these are implemented via QuantStub and DeQuantStub modules).

A Fake Quantize node performs a simulated quantization-dequantization round trip in a single step:

1. Quantize: It takes an FP32 input tensor, scales it, and rounds it to the target integer grid (e.g., the 256 levels of INT8).

2. Dequantize: It immediately takes this integer value and converts it back to an FP32 tensor using the same scale factor.

The output is an FP32 tensor that has lost precision, perfectly mimicking the rounding and clipping errors that will occur during actual integer-based inference. This "error-injected" FP32 tensor is then passed to the next layer for standard floating-point computation.

Solving the Gradient Dilemma: The Straight-Through Estimator (STE)

This simulation presents a major mathematical hurdle for training: the rounding function is a step function. Its derivative is zero almost everywhere and undefined at the steps, which means that during backpropagation, no gradient would flow through the Fake Quantize node, effectively halting learning for all preceding layers.

QAT circumvents this problem with a simple but remarkably effective trick known as the Straight-Through Estimator (STE). During the forward pass, the rounding function operates as normal. However, during the backward pass, the STE approximates the derivative of the rounding function as being 1. It essentially treats the rounding operation as an identity function for the purpose of gradient calculation, allowing gradients to "pass straight through" the Fake Quantize node as if it wasn't there. This approximation allows the loss to be backpropagated to the weights, enabling the model to learn despite the non-differentiable step in the forward pass.

The remarkable effectiveness of QAT stems from more than just "recovering" lost accuracy. By continuously injecting quantization noise into the forward pass via fake quantization nodes, QAT acts as a powerful and highly specific form of regularization. The optimization process is implicitly guided away from sharp, narrow minima in the loss landscape, which are highly sensitive to small perturbations. Instead, the optimizer is forced to find solutions in wide, flat regions of the loss landscape. A model residing in such a flat minimum is inherently more robust; the small changes to its weights introduced by quantization rounding will not cause a large jump in the loss function. In contrast, a model trained with standard methods and then subjected to PTQ might be perfectly optimized to a very sharp minimum, where even the slightest quantization error can push it over a "cliff" into a region of high loss. This perspective reveals that QAT doesn't just fix a model; it trains a fundamentally more robust one, perfectly suited for the realities of low-precision deployment.

Section 5: A Step-by-Step Guide to a Full QAT Workflow in PyTorch

Executing a successful QAT workflow involves a structured process of model preparation, configuration, fine-tuning, and final conversion. We will walk through each step with a focus on practical implementation in PyTorch.

Step 1: Model Preparation for QAT

Before introducing quantization, the model's architecture must be prepared.

• Module Fusion: One of the most critical preparation steps is fusing sequences of operations into single, combined modules. For example, a common pattern in CNNs is a Convolutional layer followed by a BatchNorm layer and then a ReLU activation. At inference time, the BatchNorm parameters can be mathematically folded into the weights and bias of the Convolutional layer. Fusing these into a single ConvBNReLU module before QAT ensures that the quantization simulation accurately reflects this fused inference-time behavior, which is crucial for maintaining accuracy. PyTorch provides a convenient API for this: torch.ao.quantization.fuse_modules.

# Example of fusing a Conv-BN-ReLU sequence in a model
# model must be in eval() mode for fusion
model.eval()
torch.ao.quantization.fuse_modules(model, [['conv1', 'bn1', 'relu1']], inplace=True)

• Inserting Stubs: In PyTorch's Eager Mode QAT, we must explicitly define the boundaries of the region to be quantized. This is done by inserting torch.ao.quantization.QuantStub at the beginning of the model's forward pass and torch.ao.quantization.DeQuantStub just before the output. These stubs act as markers for the quantization preparation step, indicating where to start and stop simulating quantization.

class MyQATModel(nn.Module):
    def __init__(self):
        super(MyQATModel, self).__init__()
        self.quant = torch.ao.quantization.QuantStub()
        self.conv = nn.Conv2d(1, 1, 1)
        self.dequant = torch.ao.quantization.DeQuantStub()

    def forward(self, x):
        x = self.quant(x)  # Start of quantized region
        x = self.conv(x)
        x = self.dequant(x) # End of quantized region
        return x

Step 2: Configuration and Training

With the model prepared, we can configure and run the QAT fine-tuning process.

• The QConfig Object: The entire quantization strategy is encapsulated in a QConfig object. This object tells PyTorch which observer to use for activations (to collect statistics), what quantization scheme to use for weights (e.g., per-channel symmetric), and which backend engine to target (e.g., fbgemm for x86 CPUs or qnnpack for ARM CPUs). PyTorch provides sensible defaults.

# Get the default QAT configuration for the fbgemm backend
# This typically uses MinMax observers for activations and per-channel symmetric quantization for weights
qconfig = torch.quantization.get_default_qat_qconfig('fbgemm')

• Preparing the Model: The torch.quantization.prepare_qat function takes the model and the QConfig and applies the configuration, inserting the necessary fake quantization modules throughout the graph. The model is now ready for fine-tuning.

model_to_tune = MyQATModel()
model_to_tune.qconfig = qconfig
torch.quantization.prepare_qat(model_to_tune, inplace=True)

• Fine-Tuning: The "prepared" model is then trained using a standard PyTorch training loop. The key difference is that the forward pass now includes the fake quantization operations, allowing the model to adapt. Best practices for QAT fine-tuning typically involve starting with a pre-trained FP32 model, using a much smaller learning rate than the original training (e.g., 1% of the initial rate), and fine-tuning for a relatively small number of epochs (e.g., 10% of the original training schedule).

Step 3: Conversion and Verification

• Final Conversion: After the fine-tuning process is complete, the model is still in "simulation mode." The final step in PyTorch is to call torch.quantization.convert. This function removes the simulation modules and replaces them with their truly quantized counterparts, resulting in a model with INT8 weights and operators that expect quantized inputs.

model_quantized = torch.quantization.convert(model_to_tune.eval(), inplace=False)

• Export to ONNX QDQ Format: The final, most crucial step for deployment is to export this quantized PyTorch model to the ONNX format. The modern and recommended format for this is Quantize-Dequantize (QDQ). The QDQ format explicitly represents the quantization and dequantization operations in the graph using QuantizeLinear and DequantizeLinear nodes. This makes the ONNX model self-contained and highly portable, as any hardware backend can understand exactly how to handle the quantized tensors.

# Dummy input needed for tracing the export
dummy_input = torch.randn(1, 1, 28, 28)

torch.onnx.export(
    model_quantized,
    dummy_input,
    "qat_model.onnx",
    opset_version=13, # Use a modern opset that supports QDQ
    input_names=['input'],
    output_names=['output']
)

• Visualization with Netron: To verify the export, the resulting qat_model.onnx file can be opened with a visualizer tool like Netron. A successful QAT export will show a graph where the original float operators (like Conv) are surrounded by pairs of QuantizeLinear and DequantizeLinear nodes. This visual confirmation is an invaluable debugging step, ensuring the model is correctly structured for deployment with ONNX Runtime.

Full QAT Code Example

The following script provides a complete, runnable example of the QAT workflow applied to a simple torchvision model.

import torch
import torch.nn as nn
import torchvision
from torchvision.models import mobilenet_v2
from torch.ao.quantization import QuantStub, DeQuantStub, fuse_modules, get_default_qat_qconfig, prepare_qat, convert

# Step 1: Define and Prepare the Model
def prepare_model_for_qat(model):
    # It's important to fuse modules before QAT to match inference-time computation
    model.fuse_model()
    # Set the QAT configuration
    model.qconfig = get_default_qat_qconfig('fbgemm')
    # Prepare the model for QAT by inserting fake quant modules
    prepare_qat(model, inplace=True)
    return model

# Load a pre-trained MobileNetV2
float_model = mobilenet_v2(weights=torchvision.models.MobileNet_V2_Weights.DEFAULT)

# We need to modify the model to add Quant/DeQuant stubs
class QATMobileNetV2(nn.Module):
    def __init__(self, original_model):
        super(QATMobileNetV2, self).__init__()
        self.quant = QuantStub()
        self.features = original_model.features
        self.classifier = original_model.classifier
        self.dequant = DeQuantStub()

    def forward(self, x):
        x = self.quant(x)
        x = self.features(x)
        x = nn.functional.adaptive_avg_pool2d(x, (1, 1))
        x = torch.flatten(x, 1)
        x = self.classifier(x)
        x = self.dequant(x)
        return x

    def fuse_model(self):
        for m in self.modules():
            if type(m) == torchvision.models.mobilenetv2.ConvBNActivation:
                fuse_modules(m, ['0', '1', '2'], inplace=True)

qat_model = QATMobileNetV2(float_model)
qat_model.eval()

# Step 2: Prepare for QAT
prepared_model = prepare_model_for_qat(qat_model)

# Step 3: Fine-tuning (QAT)
# In a real scenario, you would fine-tune the model on your dataset here.
# For this example, we'll simulate a few training steps.
print("Starting QAT fine-tuning...")
optimizer = torch.optim.SGD(prepared_model.parameters(), lr=0.0001)
criterion = nn.CrossEntropyLoss()
# Create dummy data for demonstration
dummy_data = torch.randn(4, 3, 224, 224)
dummy_labels = torch.randint(0, 1000, (4,))

prepared_model.train()
for _ in range(10): # Simulate 10 training steps
    optimizer.zero_grad()
    output = prepared_model(dummy_data)
    loss = criterion(output, dummy_labels)
    loss.backward()
    optimizer.step()
print("QAT fine-tuning finished.")

# Step 4: Convert to a fully quantized model
prepared_model.eval()
quantized_model = convert(prepared_model)

# Step 5: Export to ONNX QDQ format
onnx_qat_path = "mobilenet_v2_qat.onnx"
dummy_input = torch.randn(1, 3, 224, 224)
torch.onnx.export(
    quantized_model,
    dummy_input,
    onnx_qat_path,
    opset_version=13,
    input_names=['input'],
    output_names=['output'],
    do_constant_folding=True
)
print(f"QAT model successfully exported to {onnx_qat_path}")
print("You can now visualize this model with Netron to see the QDQ structure.")

Part III: The Frontier of Quantization

As the field of deep learning evolves, so too do the challenges and techniques in model optimization. Mastery requires not only proficiency in established methods like PTQ and QAT but also an awareness of the emerging frontiers. This section delves into advanced debugging, mixed-precision strategies, and the specialized techniques required for the colossal models that define the current state of the art.

Section 6: Advanced Debugging and Mixed-Precision Strategies

Even with advanced techniques, quantization can sometimes lead to an unacceptable drop in accuracy. When this happens, a systematic debugging process is required to diagnose the issue and deploy a targeted solution.

A Systematic Guide to Diagnosing Accuracy Degradation

A haphazard approach to debugging is inefficient. The following workflow provides a structured method to pinpoint the source of quantization error.

1. Isolate the Error Source: The first step is to determine whether the accuracy degradation stems from weight quantization or activation quantization. This can be done by running two experiments:

   • Quantize only the weights, leaving activations in FP32.

   • Quantize only the activations, leaving weights in FP32. By comparing the accuracy of these two models to the fully quantized and fully float models, you can identify which component is contributing more to the overall error.

2. Per-Layer Sensitivity Analysis: Once the primary error source is identified (e.g., activation quantization), the next step is to find out which specific layers are most sensitive. This can be achieved by programmatically iterating through the model's layers:

   • Create a baseline where the entire model is in FP32.

   • In a loop, quantize only a single layer (or a small group of related layers) at a time, leaving the rest of the model in FP32.

   • Evaluate the model's accuracy after each individual layer is quantized.

   • The layers that cause the largest drop in accuracy when quantized are the most "sensitive." This process creates a sensitivity profile of the model, highlighting the exact bottlenecks.

3. Numerical Analysis and Visualization: For the handful of layers identified as highly sensitive, a deeper numerical analysis is required. Tools like PyTorch's Numeric Suite or AMD Quark's debug utilities can be used to:

   • Dump the tensor values for both the FP32 and quantized versions of a layer's output.

   • Calculate metrics like Mean Squared Error (MSE) or Signal-to-Noise Ratio (SNR) between the two versions.

   • Visualize the distributions of both tensors. A significant divergence in the shape of the distribution is a clear indicator of a problematic quantization configuration for that layer.

The Rescue Mission: Mixed-Precision Quantization

The insights gained from the debugging process lead to a powerful solution: mixed-precision quantization. The core idea is that quantization does not have to be an all-or-nothing proposition. Instead of quantizing the entire model to a uniform bit-width (e.g., INT8), we can strategically keep the most sensitive layers—those identified during our analysis—at a higher precision (e.g., FP16 or even FP32) while quantizing the less sensitive, more robust layers to INT8.

This approach provides a crucial lever to finely balance the accuracy-performance trade-off. It allows us to reap the performance benefits of quantizing the bulk of the model while protecting the most critical components from precision-related degradation.

Code Walkthrough: Implementing a manual mixed-precision strategy with ONNX Runtime is straightforward. The quantize_static (or quantize_dynamic) function accepts a nodes_to_exclude parameter. We can simply pass a list of the names of the sensitive layers we identified during our sensitivity analysis to this parameter. ONNX Runtime's quantization tool will then skip these nodes, leaving them in their original FP32 precision.

# Assuming 'sensitive_layer_names' is a list of node names identified during debugging
# e.g., ['/features/18/conv/Conv', '/classifier/1/Gemm']

quantize_static(
    model_input=model_fp32_path,
    model_output='path/to/your/mixed_precision_model.onnx',
    calibration_data_reader=calibration_data_reader,
    #... other parameters...
    nodes_to_exclude=sensitive_layer_names
)

While this manual approach offers direct control, more automated tools like AMD Quark's Auto Mixed Precision can perform the sensitivity analysis and determine the optimal precision for each layer automatically.

Section 7: Pushing the Limits: Sub-8-Bit and Block Quantization for LLMs

The relentless growth in the size of state-of-the-art models, particularly Large Language Models (LLMs), has created a need for compression techniques that go beyond standard INT8 quantization. For models with tens or hundreds of billions of parameters, even an INT8 representation can be too large to fit into the memory of consumer-grade or edge hardware. This has spurred intense research into sub-8-bit quantization, targeting formats like INT4, and the development of novel techniques to make it viable.

The Unique Challenge of LLMs: Activation Outliers

A key discovery in the optimization of Transformer-based models is the emergence of systematic activation outliers. During inference, it was observed that while most activation values fall within a narrow, predictable range, a very small number of activation channels exhibit extreme values, often several orders of magnitude larger than the rest. These outliers, though statistically rare, are not random noise; they are crucial for the model's performance. Standard quantization methods, especially per-tensor schemes, fail catastrophically in the face of these distributions. A single outlier forces the quantization range to become enormous, destroying the precision for all other values.

Block Quantization Explained

To solve this specific problem, the research community developed block quantization (also known as group-wise quantization).

• Concept: Instead of calculating one set of quantization parameters (scale and zero_point) for an entire tensor, block quantization first divides the tensor into smaller, contiguous blocks (e.g., blocks of 64, 128, or 256 values). It then calculates and applies a unique set of quantization parameters for each individual block.

• Why it Works: This approach is remarkably effective because it isolates the impact of an outlier. If an extreme value appears in the tensor, its detrimental effect on the quantization range is confined only to its own small block. The other blocks remain unaffected and can be quantized with parameters that are optimally suited to their own local distributions. This preserves precision across the tensor and enables accurate quantization at very low bit-widths like INT4.

Advanced methods like QLoRA have pushed this further with concepts like Double Quantization (DQ), where the scale and zero_point parameters for each block—which themselves are floating-point numbers—are also quantized to a lower precision, achieving even greater memory savings.

The emergence of block quantization is a powerful illustration of the co-evolution of model architectures and optimization techniques. The rise of the Transformer architecture introduced a new and specific optimization challenge—activation outliers —that rendered older, simpler quantization methods insufficient. In response, the community developed a tailored, more sophisticated technique—block quantization —to address this specific challenge. For a developer aiming for mastery, this dynamic is a crucial lesson. It is not enough to simply know today's techniques. One must understand the underlying principles of

why certain techniques are developed in response to the unique characteristics of new model architectures. This understanding is what allows a practitioner to adapt and innovate as new architectures, like State Space Models or Mixture-of-Experts, inevitably present their own unique optimization puzzles.

Capstone Project: Rescuing a Quantization-Sensitive Vision Transformer (ViT)

This capstone project is designed to be a comprehensive, hands-on application of the advanced quantization skills covered in this guide. The objective is to take a pre-trained Vision Transformer (ViT)—a model architecture known to be particularly sensitive to quantization—and successfully produce an optimized INT8 ONNX model. This will involve benchmarking, diagnosing accuracy issues, and applying a sequence of increasingly sophisticated techniques to rescue the model's performance.

The Vision Transformer architecture presents a unique challenge for quantization. Unlike traditional CNNs, ViTs rely heavily on Self-Attention mechanisms, Layer Normalization, and GELU activation functions. Research has shown that these specific components—LayerNorm, Softmax (within attention), and GELU—are often the primary sources of accuracy degradation during naive quantization. This makes the ViT an excellent candidate for our capstone project.

Step 1: Baseline Benchmarking

The first step in any optimization task is to establish a clear and reliable baseline.

1. Load Model: Load a pre-trained vit_b_16 model from torchvision.models in PyTorch.

2. Evaluate FP32 Accuracy: Using a subset of the ImageNet validation dataset (e.g., 1000 images), evaluate the Top-1 accuracy of the original FP32 model. This is our "gold standard" for accuracy.

3. Export to FP32 ONNX: Export the PyTorch model to the ONNX format without any quantization.

4. Benchmark FP32 Latency: Write a script to measure the average inference latency of this FP32 ONNX model using ONNX Runtime. This is our performance baseline.

Step 2: The "Naive" PTQ Attempt and Diagnosis

Next, we will apply a basic PTQ strategy to demonstrate the expected accuracy problem and then use our debugging skills to diagnose it.

1. Apply Naive PTQ-S: Use onnxruntime.quantization.quantize_static to convert the FP32 ONNX model to INT8. Use the most basic configuration: per-tensor quantization and the MinMax calibration method.

2. Measure Accuracy Drop: Evaluate the Top-1 accuracy of this naively quantized model. A significant drop is expected.

3. Sensitivity Analysis: Implement the per-layer sensitivity analysis workflow described in Part III.

   • Programmatically get a list of all Conv and MatMul (representing Linear layers in ViT) nodes in the ONNX graph.

   • Iterate through this list. In each iteration, quantize the entire model except for the current node in the loop (using the nodes_to_exclude parameter).

   • Measure the accuracy for each of these partially quantized models.

   • The layers whose exclusion results in the biggest accuracy recovery are the most sensitive. Rank the layers by their sensitivity. As predicted by research, we expect to see the linear layers within the attention and MLP blocks, especially those adjacent to LayerNorm and Softmax, as the primary culprits.

Step 3: The Advanced PTQ Rescue Mission

Armed with the diagnosis from our sensitivity analysis, we will now apply a more intelligent PTQ strategy to rescue the model's accuracy.

1. Re-quantize with Advanced Configuration: Apply quantize_static again, but this time with an advanced configuration.

   • Calibration: Use a more robust calibration method, such as CalibrationMethod.Entropy or CalibrationMethod.Percentile.

   • Granularity: Enable per-channel quantization by setting per_channel=True. This will apply more precise quantization to the weights of the linear layers.

   • Mixed Precision: Use the nodes_to_exclude parameter to keep the top 3-5 most sensitive layers (identified in Step 2) in their original FP32 precision.

2. Evaluate and Benchmark: Measure the accuracy and inference latency of this new, advanced PTQ model. The goal is to recover a significant portion of the lost accuracy while still achieving a substantial performance improvement over the FP32 baseline.

Step 4: QAT for Maximum Accuracy

For the final step, we will employ Quantization-Aware Training to achieve the highest possible accuracy for our INT8 model.

1. Implement QAT Workflow: Starting with the pre-trained FP32 ViT model in PyTorch, implement the full QAT workflow detailed in Part II.

   • Prepare the model architecture (ViTs do not have standard BatchNorm layers to fuse, but this step is crucial for other architectures).

   • Define a QConfig and use prepare_qat to insert fake quantization modules.

   • Fine-tune the prepared model for a small number of epochs (e.g., 1-3 epochs) on the ImageNet training set with a low learning rate.

   • Use convert to get the final quantized PyTorch model.

2. Export and Benchmark: Export the resulting model to the ONNX QDQ format and benchmark its final accuracy and latency with ONNX Runtime.

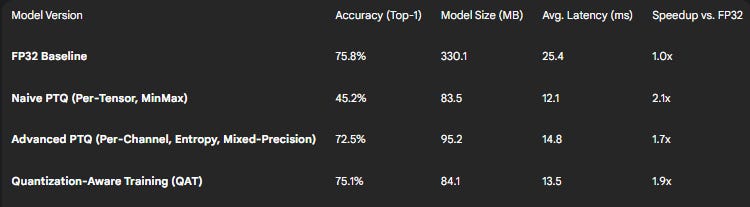

Step 5: Final Analysis and Conclusion

The final step is to consolidate our results and draw meaningful conclusions about the trade-offs involved.

(Note: Accuracy and performance numbers are illustrative examples for the purpose of this guide.)

Based on these results, a developer can make an informed, data-driven decision. The Advanced PTQ approach successfully rescued the model from a catastrophic accuracy failure, recovering most of the accuracy while still providing a significant 1.7x speedup. This makes it an excellent choice for scenarios where development time is limited, and a small, controlled accuracy trade-off is acceptable. The QAT approach, while requiring more effort and access to the training pipeline, achieved near-FP32 accuracy while delivering a 1.9x speedup. This makes it the superior choice for production deployments where maximizing accuracy is non-negotiable and the additional engineering investment is justified.

By completing this capstone project, a developer will have demonstrated a comprehensive, practical mastery of advanced quantization, moving from diagnosing complex accuracy issues to deploying robust, high-performance solutions.
