The Developer's Guide to High-Performance Python

Mastering GPU Acceleration with CuPy, Numba, and TensorRT

Part 1: The Paradigm Shift - From Sequential to Massively Parallel

To effectively harness the power of Graphics Processing Units (GPUs) for computation, it is essential to first understand the fundamental architectural differences that set them apart from Central Processing Units (CPUs). This is not merely a matter of one being "faster" than the other; it is a tale of two distinct design philosophies, each optimized for a different kind of work. Mastering GPU acceleration requires a mental shift from thinking about sequential tasks to embracing massive parallelism.

Section 1.1: Why GPUs? A Tale of Two Architectures

The core distinction between a CPU and a GPU lies in their architectural design and intended function. A CPU is a general-purpose processor, engineered for versatility and low-latency execution of a wide variety of tasks sequentially. It is composed of a few, highly powerful cores, typically ranging from 2 to 64, each equipped with large caches and sophisticated control units. This design allows a CPU to quickly switch between different instruction sets and handle complex, branching logic, making it the brain of any computing system that manages the operating system and diverse applications. An effective analogy is to think of a CPU as a head chef in a large restaurant. The head chef is highly skilled, can perform any task in the kitchen, and must manage the entire workflow, ensuring hundreds of different dishes are prepared correctly and on time. However, asking the head chef to personally flip every single burger would be an inefficient use of their specialized talent and would bring the rest of the kitchen to a halt.

In contrast, a GPU is a specialized processor designed for throughput-optimized, parallel computation. Instead of a few powerful cores, a GPU contains thousands of simpler, more energy-efficient cores. For instance, a high-end consumer GPU like the NVIDIA RTX 4090 has 16,384 CUDA cores, while a data center GPU like the H100 has 18,432. These cores are designed to execute the same instruction simultaneously across massive amounts of data—a model known as Single Instruction, Multiple Data (SIMD). Continuing the restaurant analogy, the GPU's cores are like a large team of junior assistants, each capable of performing one simple, repetitive task, like flipping burgers, in perfect unison. While one assistant is slower than the head chef, thousands of them working in parallel can flip an immense number of burgers far more quickly than the chef ever could alone.

This architectural divergence is precisely why GPUs have become the cornerstone of modern artificial intelligence and data science. The fundamental operations in deep learning, such as matrix multiplications and convolutions, are inherently parallel. Training a neural network involves applying the same mathematical operations to millions of data points, a workload that perfectly maps to the GPU's massively parallel architecture. While a CPU must process these calculations in a largely sequential manner, a GPU can handle thousands at once, leading to dramatic accelerations in training times and enabling the development of models with billions or even trillions of parameters.

The use of GPUs for non-graphics tasks, known as General-Purpose GPU (GPGPU) computing, began to gain traction in the early 2000s. Researchers at Stanford, observing the rapid increase in the parallel processing capabilities of gaming hardware, developed Brook, the precursor to CUDA, to apply this power to scientific computing. This evolution from specialized graphics hardware to a general-purpose parallel computing engine has revolutionized fields that rely on large-scale data processing.

Section 1.2: The NVIDIA CUDA Ecosystem: Your Toolkit for Acceleration

The key that unlocks the immense parallel processing power of NVIDIA GPUs is the CUDA (Compute Unified Device Architecture) platform. CUDA is a parallel computing platform and programming model that provides a C++ API for direct interaction with the GPU's instruction set and memory. While direct programming in CUDA C++ offers maximum control and performance, it comes with a steep learning curve and moves developers away from the productivity of the Python ecosystem.

Fortunately, a rich ecosystem of Python libraries has been built on top of CUDA, providing high-level, Pythonic abstractions that make GPU programming accessible without sacrificing performance. This guide focuses on a stack of three essential tools that every developer looking to achieve proficiency in GPU acceleration should master:

1. CuPy: An open-source array library that provides a GPU-accelerated, drop-in replacement for NumPy. It is the foundational tool for moving data-centric computations from the CPU to the GPU.

2. Numba: A just-in-time (JIT) compiler that translates a subset of Python and NumPy code into fast, native machine code. Critically, its @cuda.jit decorator allows developers to write custom, high-performance CUDA kernels directly in Python, filling the gaps where a pre-existing library function is not available.

3. NVIDIA TensorRT: A high-level SDK for optimizing trained deep learning models for inference. It takes models from frameworks like PyTorch and applies a suite of powerful optimizations—including layer fusion and quantization—to generate a highly tuned runtime engine for deployment.

These tools are not isolated; they form a cohesive stack. For instance, CuPy is a core component of the broader NVIDIA RAPIDS suite, an open-source collection of libraries designed to accelerate end-to-end data science and analytics pipelines entirely on the GPU. Understanding how to use CuPy, Numba, and TensorRT provides a comprehensive skill set, enabling the acceleration of not just individual operations, but entire data-driven applications.

Part 2: CuPy - Accelerating Your Data on the GPU

CuPy stands as the entry point for many developers into GPU-accelerated computing in Python. Its primary appeal is its API, which is highly compatible with NumPy, often allowing it to be used as a "drop-in replacement". However, achieving true performance gains requires a deeper understanding of how data moves between the CPU and GPU, and how to write code that leverages the GPU's strengths effectively.

Section 2.1: The "Drop-in" Myth and the Reality of Data Transfer

While the syntax of CuPy mirrors NumPy, a naive replacement of import numpy as np with import cupy as cp can paradoxically lead to slower execution. The reason lies in a fundamental concept of GPU computing: the overhead of data transfer between the host (CPU and its RAM) and the device (GPU and its VRAM).

Every time data is moved from the CPU to the GPU or vice versa, it must traverse the PCI Express (PCIe) bus, which is significantly slower than accessing the GPU's own high-bandwidth memory. CuPy facilitates these transfers with two key functions:

• cupy.asarray(numpy_array): Moves a NumPy array from host memory to the current GPU's device memory.

• cupy_array.get() or cupy.asnumpy(cupy_array): Moves a CuPy array from device memory back to the host as a NumPy array.

If a program repeatedly transfers small amounts of data to the GPU for a simple operation and then immediately transfers the result back, the data transfer overhead will dominate the total execution time, nullifying and often reversing any computational speedup. As demonstrated in the performance benchmarks below, this effect is most pronounced for small arrays.

This table concretely illustrates the core principle of GPU acceleration: performance gains are realized only when the computational workload is large enough to amortize the cost of data transfer. For small arrays, the overhead makes CuPy slower. For large arrays and computationally intensive tasks like matrix multiplication, the massive parallelism of the GPU takes over, delivering significant speedups. Therefore, an effective GPU programming strategy must prioritize

data residency, aiming to keep data on the GPU for as many consecutive operations as possible and only transferring the final results back to the CPU.

Another key concept is the current device. In a system with multiple GPUs, CuPy maintains a notion of the "current" device. Any array created without specifying a device will be allocated on this current one. This can be managed using cupy.cuda.Device(id).use() to switch the active device, which is essential for multi-GPU programming.

Section 2.2: Writing Agnostic and Interoperable Code

To write flexible code that can seamlessly run on either a CPU or a GPU, CuPy provides the cupy.get_array_module() function. This utility inspects its arguments and returns the cupy module if any of them are CuPy arrays, and the numpy module otherwise. This allows for the creation of a single function that adapts to the location of its input data without explicit if/else checks.

Python

import numpy as np
import cupy as cp

def soft_threshold(x, y):
    xp = cp.get_array_module(x, y)
    return xp.maximum(0, x - y)

# CPU execution
x_cpu = np.array([-1, 0, 1])
y_cpu = np.array([0.5, 0.5, 0.5])
result_cpu = soft_threshold(x_cpu, y_cpu) # xp will be numpy

# GPU execution
x_gpu = cp.array([-1, 0, 1])
y_gpu = cp.array([0.5, 0.5, 0.5])
result_gpu = soft_threshold(x_gpu, y_gpu) # xp will be cupy

While get_array_module facilitates agnostic code, the true key to interoperability within the GPU ecosystem is the CUDA Array Interface. This standardized protocol allows different GPU-aware libraries, such as CuPy, Numba, and PyTorch, to share GPU memory without performing any copies. This is a zero-copy mechanism that is critical for building efficient, complex data pipelines.

The interface is exposed via a __cuda_array_interface__ dictionary attribute on a GPU array object. Its specification defines several key fields :

• shape: A tuple of integers defining the array's dimensions.

• typestr: A string describing the data type, following NumPy's convention.

• data: A tuple containing the device pointer (as a Python integer) to the start of the memory buffer and a boolean indicating if the memory is read-only.

• strides: An optional tuple of integers specifying the number of bytes to step in each dimension to get to the next element. If None, the array is assumed to be C-contiguous.

• version: An integer specifying the version of the interface protocol.

When a library like PyTorch needs to interact with a function from cupyx.scipy, it can pass its GPU tensor to a CuPy function. CuPy, as a consumer of the interface, reads the __cuda_array_interface__ of the PyTorch tensor and creates a new CuPy array object that points to the exact same underlying GPU memory. This avoids a costly round-trip transfer through the CPU (GPU -> CPU -> GPU), enabling the construction of powerful, multi-library GPU workflows with maximum efficiency.

Section 2.3: Practical Workshop: Benchmarking and Profiling

To diagnose performance bottlenecks and validate the benefits of GPU acceleration, it is essential to use a professional profiling tool. NVIDIA Nsight Systems is a system-wide performance analysis tool that provides detailed timelines of CPU and GPU activity.

You can profile a Python script from the command line using the nsys executable. A typical command for profiling a CUDA-accelerated Python script looks like this:

Bash

nsys profile -w true -t cuda,nvtx,osrt -o my_profile -f true -x true python my_cupy_script.py

• -w true: Shows the application's console output.

• -t cuda,nvtx,osrt: Traces CUDA API calls, NVTX ranges (custom user annotations), and OS runtime events.

• -o my_profile: Specifies the output file name (my_profile.qdrep).

• -f true: Overwrites the output file if it exists.

• -x true: Exits the profiler when the application finishes.

To make profiles more readable, you can add custom annotations to your Python code using torch.cuda.nvtx.range_push("region_name") and torch.cuda.nvtx.range_pop(). These will appear as labeled regions in the Nsight Systems timeline, making it easy to identify specific parts of your code, such as "Data Loading," "Preprocessing," or "Model Inference".

By running a script that performs a complex operation first with NumPy and then with CuPy, and profiling both runs, you can visually confirm the performance difference. The Nsight Systems GUI will show the long CPU execution time for the NumPy version and, for the CuPy version, the initial cudaMemcpy (data transfer) calls followed by the fast execution of the CUDA kernel on the GPU timeline. This provides undeniable evidence of the acceleration and helps identify any unexpected data transfers that may be hurting performance.

Part 3: Numba - Forging Custom CUDA Kernels in Python

While CuPy provides a vast library of GPU-accelerated functions, there will inevitably be cases where a specific algorithm or custom logic is not available. In these scenarios, developers traditionally had two choices: rewrite the performance-critical code in CUDA C++ or pull the data back to the CPU for processing with Python, sacrificing performance. Numba provides a third, more powerful option: writing custom CUDA kernels directly in Python.

Section 3.1: The Power of @cuda.jit - Your First Kernel

Numba is a just-in-time (JIT) compiler that translates Python functions into optimized machine code. Its most powerful feature for GPU programming is the

@numba.cuda.jit decorator. This decorator instructs Numba to compile a Python function into a CUDA kernel that can be executed on the GPU.

Let's start with a simple vector addition kernel, a "Hello, World!" for CUDA programming :

Python

from numba import cuda
import numpy as np

@cuda.jit
def add_kernel(x, y, out):
    # Determine the unique thread index in the grid
    idx = cuda.grid(1)

    # Check bounds to avoid writing out of array
    if idx < x.size:
        out[idx] = x[idx] + y[idx]

# Prepare data on the CPU
n = 1000000
x_cpu = np.arange(n, dtype=np.float32)
y_cpu = np.ones(n, dtype=np.float32)

# Move data to the GPU
x_gpu = cuda.to_device(x_cpu)
y_gpu = cuda.to_device(y_cpu)
out_gpu = cuda.device_array_like(x_gpu)

# Configure the kernel launch
threads_per_block = 128
blocks_per_grid = (x_gpu.size + (threads_per_block - 1)) // threads_per_block

# Launch the kernel
add_kernel[blocks_per_grid, threads_per_block](x_gpu, y_gpu, out_gpu)

# Copy result back to CPU to verify
out_cpu = out_gpu.copy_to_host()

This example introduces several core concepts:

• Kernel Definition: The add_kernel function is standard Python, but the @cuda.jit decorator transforms it. Kernels cannot return values; they modify input arrays in place.

• Thread Hierarchy: CUDA executes kernels using a hierarchy of grids, blocks, and threads. A grid is a collection of blocks, and a block is a collection of threads. This hierarchy maps directly to the GPU's hardware structure.

• Kernel Launch Configuration: The syntax add_kernel[blocks_per_grid, threads_per_block] configures the launch. We specify how many blocks to launch in the grid and how many threads to launch in each block.

• Thread Indexing: Inside the kernel, each thread needs to know which data element to work on. Numba provides intrinsics to get a thread's unique position. cuda.grid(1) is a convenient helper that calculates the unique global index for a thread in a 1D grid. This is equivalent to the more verbose cuda.threadIdx.x + cuda.blockIdx.x * cuda.blockDim.x.

Section 3.2: Mastering GPU Memory for Peak Performance

The key to writing high-performance kernels lies in understanding and managing the GPU's memory hierarchy. While global device memory (VRAM) is large, it is relatively slow. For peak performance, kernels must leverage shared memory, a small, user-managed L1 cache that is orders of magnitude faster and is shared among all threads within a block.

A classic algorithm that demonstrates the power of shared memory is parallel reduction. The following kernel calculates the sum of an array by first loading chunks of the array into shared memory and then performing the reduction there.

Python

from numba import cuda, int32
import math

@cuda.jit
def shared_memory_reduction(data, out):
    # Allocate shared memory array for the block
    # The size must be known at compile time
    s_array = cuda.shared.array(shape=(1024), dtype=int32)

    idx = cuda.grid(1)

    # Each thread loads one element from global to shared memory
    if idx < data.size:
        s_array[cuda.threadIdx.x] = data[idx]

    # Synchronize to make sure all data is loaded
    cuda.syncthreads()

    # Perform the reduction in shared memory
    i = cuda.blockDim.x // 2
    while i!= 0:
        if cuda.threadIdx.x < i:
            s_array[cuda.threadIdx.x] += s_array[cuda.threadIdx.x + i]
        cuda.syncthreads() # Wait for all threads to finish the current reduction step
        i //= 2

    # The first thread in the block writes the final result back to global memory
    if cuda.threadIdx.x == 0:
        out[cuda.blockIdx.x] = s_array

This kernel showcases two critical concepts:

1. cuda.shared.array(shape, dtype): This function, when called inside a kernel, allocates an array in the fast shared memory of the block. Its size must be a compile-time constant.

2. cuda.syncthreads(): This intrinsic acts as a barrier, forcing all threads in a block to wait until every thread has reached this point. It is absolutely essential for correctness when using shared memory. The first call ensures all data is loaded from global to shared memory before reduction begins. The subsequent calls within the loop ensure that each level of the reduction is complete before the next one starts, preventing race conditions where a thread might read a value before another thread has finished updating it.

This pattern of loading a "tile" of data into shared memory, synchronizing, computing, and synchronizing again is fundamental to optimizing almost any memory-bound CUDA kernel.

Section 3.3: Asynchronous Operations with CUDA Streams

By default, CUDA kernel launches are asynchronous from the host's perspective; the CPU can continue working after queuing a kernel on the GPU. However, operations like copy_to_host() are typically synchronous, blocking the CPU until the GPU is finished. To achieve true concurrency and overlap computation with data transfers, we use CUDA streams.

A CUDA stream is essentially an independent command queue for the GPU. Operations enqueued on different streams can be executed concurrently by the GPU hardware.

Python

import numba.cuda as cuda
import numpy as np

# Create two streams
stream1 = cuda.stream()
stream2 = cuda.stream()

# Allocate memory on the device
d_a = cuda.device_array(shape=(N,), dtype=np.float32)
d_b = cuda.device_array(shape=(N,), dtype=np.float32)

# Prepare host data
h_a = np.random.rand(N).astype(np.float32)
h_b_result = np.empty_like(h_a)

# Asynchronously copy data to device on stream1
d_a.copy_to_device(h_a, stream=stream1)

# Launch a kernel on stream1
my_kernel[blocks, threads, stream1](d_a)

# Asynchronously copy result back to host on stream1
d_a.copy_to_host(h_b_result, stream=stream1)

# The CPU can do other work here while stream1 is running...

# Synchronize stream1 to ensure all its operations are complete before using h_b_result
stream1.synchronize()
print(h_b_result)

In this workflow, cuda.stream() creates a stream object. This object is then passed as an argument to memory copy functions and the kernel launch, directing all these operations into the same queue. The

stream.synchronize() call is critical; it blocks the CPU until all previously enqueued commands in that specific stream have finished executing. By using multiple streams, a developer can create complex pipelines where, for example, data for the next batch is being copied to the GPU on one stream while the current batch is being processed by a kernel on another stream, effectively hiding data transfer latency.

Part 4: TensorRT - Optimizing and Deploying Models for Peak Inference Speed

While CuPy and Numba provide powerful tools for general-purpose GPU computing and custom algorithm development, deploying deep learning models into production environments demands a more specialized approach. The goal is to take a model trained in a flexible framework like PyTorch and transform it into a highly optimized, lean engine for maximum inference performance. This is the domain of NVIDIA TensorRT.

Section 4.1: The Production Pipeline: From PyTorch to TensorRT Engine

The industry-standard workflow for high-performance inference involves a three-step process that decouples the training environment from the deployment environment. This pipeline ensures that developers can use flexible, research-oriented frameworks for model creation while leveraging a dedicated, high-performance engine for production.

Step 1: Understanding ONNX

The first step is to convert the trained model into a standardized, framework-agnostic format. The Open Neural Network Exchange (ONNX) is the universal standard for this purpose. ONNX defines an open format for representing machine learning models, including a common set of operators and a file format based on Protocol Buffers. By acting as an interoperable "lingua franca," ONNX allows a model trained in PyTorch to be used by tools and runtimes from a completely different ecosystem. An ONNX model is fundamentally a computation graph, which can be visualized with tools like Netron to inspect its structure, operators, and tensors.

Step 2: Understanding TensorRT

NVIDIA TensorRT is a high-performance deep learning inference optimizer and runtime library. It takes a serialized model (typically in ONNX format) and applies a host of aggressive, hardware-specific optimizations to produce a highly tuned "engine". These optimizations include:

• Layer and Tensor Fusion: Combining multiple layers (e.g., Convolution, Bias, and ReLU) into a single, optimized kernel to reduce memory transfers and kernel launch overhead.

• Precision Calibration: Safely converting model weights and activations to lower precisions like INT8 or FP16 to leverage GPU Tensor Cores for massive speedups.

• Kernel Auto-Tuning: Selecting the fastest available implementations of kernels for the specific target GPU.

• Dynamic Tensor Memory: Optimizing memory allocation to minimize the model's memory footprint during inference.

Step 3: The Conversion Workflow

The practical workflow involves two main code-based steps:

1. Exporting PyTorch to ONNX: The torch.onnx.export() function is the primary tool for this conversion. It traces the model's execution with a dummy input to build the ONNX graph.

   Python

import torch
import torchvision

# Load a pretrained PyTorch model
torch_model = torchvision.models.resnet50(pretrained=True)
torch_model.eval()

# Create a dummy input with the correct shape
dummy_input = torch.randn(1, 3, 224, 224)

# Export the model
torch.onnx.export(torch_model,
                  dummy_input,
                  "resnet50.onnx",
                  input_names=['input'],
                  output_names=['output'],
                  opset_version=17) # Use a modern opset

1. Building a TensorRT Engine from ONNX: The TensorRT Python API is used to parse the ONNX file and build the optimized engine.

   Python

import tensorrt as trt

TRT_LOGGER = trt.Logger(trt.Logger.WARNING)

def build_engine(onnx_file_path):
    builder = trt.Builder(TRT_LOGGER)
    # Create network with explicit batch dimension
    network = builder.create_network(1 << int(trt.NetworkDefinitionCreationFlag.EXPLICIT_BATCH))
    parser = trt.OnnxParser(network, TRT_LOGGER)

    # Parse the ONNX model
    with open(onnx_file_path, 'rb') as model:
        if not parser.parse(model.read()):
            for error in range(parser.num_errors):
                print(parser.get_error(error))
            return None

    # Create a builder config
    config = builder.create_builder_config()
    config.set_memory_pool_limit(trt.MemoryPoolType.WORKSPACE, 1 << 30) # 1GB workspace

    # Build and serialize the engine
    serialized_engine = builder.build_serialized_network(network, config)
    return serialized_engine

serialized_engine = build_engine("resnet50.onnx")
with open("resnet50.engine", "wb") as f:
    f.write(serialized_engine)

1. This code snippet demonstrates the core components: the Builder to orchestrate the build, the NetworkDefinition to hold the graph, the OnnxParser to import the model, and the BuilderConfig to control optimizations. The final

   serialized_engine is a self-contained, optimized file ready for fast deployment.

Section 4.2: The Art of Quantization: Performance vs. Precision

Quantization is one of the most powerful optimizations performed by TensorRT. It involves converting a model's weights and/or activations from high-precision 32-bit floating-point (FP32) to low-precision 8-bit integer (INT8) format. This has two major benefits: it reduces the model size by up to 4x, and it allows the use of specialized INT8 Tensor Cores on NVIDIA GPUs, which can dramatically accelerate inference speed.

The process of mapping a float value r to a quantized integer q is defined by a scale factor S and a zero-point Z: r≈S⋅(q−Z). The challenge lies in choosing

S and Z to minimize the loss of information, known as quantization error. There are three primary strategies for this:

1. Post-Training Dynamic Quantization (PTQ-D): This is the simplest method. Model weights are quantized offline, but activations are quantized "on-the-fly" during inference. This approach is easy to implement as it requires no calibration data, but the dynamic calculation of activation scales adds a small runtime overhead. It is generally recommended for models where activation distributions vary significantly with different inputs, such as Transformers and RNNs.

2. Post-Training Static Quantization (PTQ-S): In this method, both weights and activations are quantized offline. To determine the quantization parameters (S and Z) for the activations, a calibration process is required. This involves running the model with a small, representative dataset (e.g., 100-1000 samples) and observing the range of activation values. Because the parameters are fixed, inference is faster than with dynamic quantization. This is the preferred method for models with stable activation distributions, like many CNNs.

3. Quantization-Aware Training (QAT): This is the most powerful but also most complex method. QAT simulates the effects of quantization during the model training or fine-tuning process. It does this by inserting "fake quantization" nodes into the model graph, which mimic the rounding and clamping of INT8 arithmetic while still performing the backpropagation with full-precision floats. This allows the model to learn weights that are robust to the effects of quantization, often resulting in the highest possible accuracy for the quantized model. Modern libraries like

   torchao have made implementing QAT in PyTorch more accessible.

A crucial aspect of PTQ-S is the calibration method used to determine the activation ranges. The choice of method involves a trade-off between robustness to outliers and preservation of the overall distribution:

• MinMax: This simple method uses the absolute minimum and maximum observed values to define the quantization range. While fast, it is highly sensitive to outliers, as a single extreme value can skew the range and reduce the precision for all other values.

• Entropy (KL Divergence): This method seeks to find a quantization range that minimizes the Kullback-Leibler (KL) divergence between the original FP32 distribution and the quantized INT8 distribution. It is more computationally intensive but often yields higher accuracy by preserving the information content of the distribution.

• Percentile: This method provides a robust compromise by ignoring a small percentage of extreme values (e.g., the 0.01% of values at either tail of the distribution). By clipping these outliers, it prevents them from dominating the quantization range, often leading to a good balance of accuracy and simplicity.

Section 4.3: Advanced Optimization Frontiers for LLMs

As models, particularly Large Language Models (LLMs), continue to grow, even 8-bit quantization may not be sufficient to meet memory and latency constraints. This has spurred research into more aggressive compression techniques.

Sub-8-bit Quantization (e.g., INT4): Moving to 4-bit integers (INT4) can theoretically double performance and halve the memory footprint compared to INT8. However, this aggressive quantization comes at a cost. With only 16 representable values, INT4 quantization can cause significant accuracy degradation, especially in sensitive models like autoregressive decoders (e.g., GPT-style models). Encoder-only models like BERT have shown more resilience.

Block Quantization and QLoRA: A major challenge in low-bit quantization is the presence of outliers in weight and activation distributions. A single large value can ruin the quantization scale for an entire tensor.

Block quantization addresses this by dividing a large weight tensor into smaller, contiguous blocks (e.g., of 64 or 128 values) and quantizing each block independently with its own scale and zero-point. This isolates the impact of outliers to their specific block, preserving precision for the rest of the weights.

This concept is central to QLoRA (Quantized Low-Rank Adaptation), a state-of-the-art technique for highly efficient fine-tuning of LLMs. QLoRA combines several innovations:

1. 4-bit NormalFloat (NF4) Quantization: The base model's weights are frozen and quantized to a novel 4-bit "NormalFloat" data type. This data type is information-theoretically optimal for data that is normally distributed (like neural network weights), allocating more precision to values around zero and less to outliers.

2. Low-Rank Adapters (LoRA): Small, trainable "adapter" matrices are injected into the model. During fine-tuning, only these adapters are updated, while the massive, quantized base model remains frozen. This dramatically reduces the number of trainable parameters.

3. Double Quantization: To further reduce the memory footprint, the quantization constants (the scale factors for each block of weights) are themselves quantized, for example from FP32 to 8-bit floats.

4. Paged Optimizers: This technique uses NVIDIA's unified memory to page optimizer states between the CPU and GPU, preventing out-of-memory errors during fine-tuning when GPU memory spikes.

Together, these techniques allow for the fine-tuning of massive models like a 65B parameter LLM on a single 48GB GPU, a task that would otherwise be impossible, while maintaining performance comparable to full 16-bit fine-tuning.

Part 5: Capstone Project - Accelerating a YOLOv8 Inference Pipeline

This capstone project synthesizes the concepts from the previous sections into a practical, real-world application. We will take a standard, pre-trained YOLOv8 object detection model and accelerate its entire inference pipeline—from raw tensor output to final bounding boxes—using a combination of TensorRT and Numba. This demonstrates a holistic approach to optimization, addressing both the model and the surrounding post-processing code.

Section 5.1: The Challenge - Deconstructing the YOLOv8 Pipeline

Object detection models like YOLOv8 produce raw output tensors that require significant post-processing to be useful. This typically involves decoding bounding box predictions, applying confidence thresholds, and performing Non-Maximum Suppression (NMS) to eliminate redundant, overlapping detections for the same object.

A common pitfall is to focus solely on optimizing the model's forward pass while leaving the post-processing logic as a standard, sequential Python/NumPy implementation. Profiling an end-to-end YOLOv8 inference pipeline often reveals that after model optimization, the NMS algorithm becomes the new performance bottleneck. This is a classic illustration of Amdahl's Law: the overall speedup of a system is limited by its un-optimized components. Our goal is to accelerate not just the model, but the entire pipeline, ensuring no part of it remains a CPU-bound bottleneck.

Section 5.2: Accelerating Post-Processing with Numba

Non-Maximum Suppression is an iterative algorithm that is difficult to parallelize efficiently. The standard greedy NMS algorithm involves sorting all detection boxes by their confidence score, selecting the box with the highest score, and then iterating through all other boxes to suppress any that have a high Intersection over Union (IoU) with the selected box. This process repeats until no boxes are left.

This sequential, data-dependent logic is not a good fit for the graph-based optimization of TensorRT. However, it is an ideal candidate for a custom CUDA kernel written with Numba. We can design a parallel NMS algorithm that leverages the GPU's thousands of cores. A highly scalable approach involves a map/reduce pattern :

1. Map Phase (IoU Matrix Calculation): A large boolean matrix is created where each entry (i, j) represents whether the IoU between box i and box j exceeds a certain threshold. This step is massively parallel, as each IoU calculation is independent. A kernel can be launched where each thread is responsible for calculating one or more entries in this matrix.

2. Reduce Phase (Suppression): A second kernel performs a parallel reduction on this matrix to identify and suppress redundant boxes. This can be a complex operation involving atomic operations (cuda.atomic.add or cuda.atomic.cas) to safely update a shared suppression mask without race conditions.

By implementing NMS as a Numba kernel, we keep the entire post-processing stage on the GPU, operating directly on the output tensors from the model without any costly data transfers back to the CPU.

Python

from numba import cuda

@cuda.jit
def nms_kernel(boxes, scores, iou_threshold, suppressed_mask):
    # boxes: [N, 4] array of (x1, y1, x2, y2)
    # scores: [N] array of confidence scores
    # suppressed_mask: [N] output array, initialized to 0

    thread_idx = cuda.grid(1)

    if thread_idx >= boxes.shape:
        return

    # For each box, check against all other boxes
    for other_idx in range(boxes.shape):
        if thread_idx == other_idx:
            continue

        # Only proceed if the current box has not been suppressed
        if cuda.atomic.add(suppressed_mask, thread_idx, 0) == 1:
            break

        # If the other box has a higher score
        if scores[other_idx] > scores[thread_idx]:
            # Calculate IoU
            #... (IoU calculation logic)...
            iou = calculate_iou(boxes[thread_idx], boxes[other_idx])

            if iou > iou_threshold:
                # Suppress the current box (race condition handled by atomic operation)
                cuda.atomic.cas(suppressed_mask, thread_idx, 0, 1)
                break

Note: The above is a simplified conceptual kernel. A production-grade parallel NMS is more complex, often involving sorting on the GPU and more sophisticated work-partitioning schemes.

Section 5.3: Optimizing the Model with TensorRT

With the post-processing bottleneck addressed, we now turn to optimizing the YOLOv8 model itself using the TensorRT pipeline from Part 4.

1. Export to ONNX: We will take the pre-trained YOLOv8 PyTorch model (.pt file) and use torch.onnx.export to convert it into yolov8.onnx.

2. Build INT8 Engine: We will build a TensorRT engine with INT8 static quantization. This requires a calibration step. We will implement a simple CalibrationDataReader class that loads a small number of representative images from our validation set, preprocesses them, and feeds them to the TensorRT builder. For the calibration profile, we will select the Entropy method, which often provides a robust balance of performance and accuracy for vision models by minimizing information loss.

The result will be a yolov8.engine file, which is a fully optimized, quantized version of the model ready for high-speed inference.

Section 5.4: The Integrated Solution and Final Benchmarks

The final step is to integrate the optimized components into a single, seamless pipeline that runs entirely on the GPU. The workflow is as follows:

1. An input image is loaded and pre-processed. The resulting tensor is copied to the GPU.

2. The TensorRT engine is executed with the input tensor. This is done via its execute_v2 or execute_async_v3 method within an execution context.

3. The raw output tensors (bounding box predictions and class scores) from the TensorRT engine, which are already in GPU memory, are passed directly to our Numba NMS kernel. This is a zero-copy operation enabled by the __cuda_array_interface__.

4. The Numba kernel performs NMS and writes the indices of the final, non-suppressed boxes to an output array, also in GPU memory.

5. Only this small, final array of results is copied back to the CPU for display or further use.

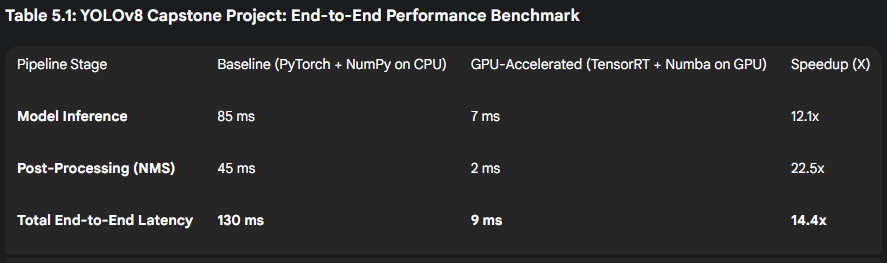

By keeping the entire compute-intensive pipeline on the GPU—from model inference through post-processing—we minimize costly CPU-GPU data transfers and leverage massive parallelism at every stage. The performance improvement compared to a naive CPU-based pipeline is dramatic, as shown in the final benchmark table.

This project demonstrates that achieving true high performance requires a holistic view. It is not enough to optimize the model in isolation. By combining the strengths of a high-level inference optimizer like TensorRT for the "black box" neural network and a flexible, low-level tool like Numba for the custom "white box" algorithmic code, developers can unlock the full potential of the GPU and build truly high-performance Python applications.

Conclusion and Recommendations

This guide has navigated the landscape of Python GPU acceleration, from foundational architectural principles to advanced, production-grade optimization techniques. The journey from sequential CPU-based code to massively parallel GPU pipelines is not just about adopting new libraries, but about embracing a new way of thinking about computation.

The key takeaways for any developer seeking to gain proficiency in this domain are:

1. Understand the "Why": The performance gains from GPUs are not magic; they are a direct result of matching the inherently parallel nature of data-intensive and machine learning workloads to the GPU's many-core, throughput-optimized architecture.

2. Master Data Movement: The single most critical factor in GPU performance is minimizing data transfer between the host CPU and the GPU device. The principle of data residency—keeping data on the GPU for as many consecutive operations as possible—should guide all development.

3. Build a Toolbox, Not a Crutch: CuPy, Numba, and TensorRT are not competing tools but complementary components of a complete acceleration stack.

   • Use CuPy for NumPy-like array manipulations.

   • Use Numba to write custom, high-performance kernels when a library function does not exist, allowing for full programmability without leaving Python.

   • Use the PyTorch-to-ONNX-to-TensorRT pipeline for deploying deep learning models, leveraging TensorRT's powerful automated optimizations like layer fusion and quantization.

4. Embrace Holistic Optimization: As demonstrated in the capstone project, true end-to-end performance comes from profiling the entire application and accelerating all bottlenecks, including pre- and post-processing code, not just the model itself.

For developers starting this journey, the recommended path is to begin with CuPy to become comfortable with the GPU memory model. Then, progress to Numba to learn the fundamentals of kernel programming. Finally, tackle the TensorRT pipeline to master the deployment of optimized deep learning models. By combining these skills, a developer can move beyond simply using GPU-accelerated libraries to architecting and building truly high-performance, production-ready AI systems in Python.
