The Production-Ready Observability Guide: From Job Description to End-to-End Mastery

Part 1: Deconstructing Observability - Beyond Monitoring

To master the skills required for modern software development and operations, one must first grasp the foundational shift from traditional monitoring to comprehensive observability. This evolution is not merely a change in terminology; it represents a fundamental change in how complex systems are understood, debugged, and maintained. Before diving into specific tools and practices, it is essential to establish this conceptual groundwork.

1.1 The Core Distinction: Asking "Why?" Not Just "Is it Down?"

The terms "monitoring" and "observability" are often used interchangeably, but they represent distinct, albeit related, concepts. A strong understanding begins with appreciating this difference.

Monitoring as an Action Traditional monitoring is best understood as a specific action: the process of collecting and analyzing data to watch for predefined conditions. It operates on the principle of "known unknowns"—scenarios that are anticipated and for which specific checks and alerts are created. For example, a team might set up a monitoring alert for when CPU utilization exceeds 90% or when application latency surpasses a 200ms threshold. This approach is fundamentally reactive; it tells an operator

when a known problem is occurring. It is effective for simple, predictable systems where the failure modes are well-understood.

Observability as a Property Observability, in contrast, is an inherent property of a system. Originating from control theory in applied mathematics, observability is defined as the ability to measure a system's internal states by examining its external outputs, known as telemetry. For a software system, this means that if a system is observable, an engineer can ask arbitrary, novel questions about its behavior and get answers, even for scenarios that were never anticipated. This capability is crucial for debugging "unknown unknowns"—the unpredictable and emergent failure modes that are common in complex, distributed architectures. While monitoring answers the question, "Is the system broken?", observability empowers engineers to answer the far more critical question: "Why is the system behaving this way?". It facilitates a proactive and exploratory approach to system analysis, moving beyond simple health checks to deep, diagnostic investigation.

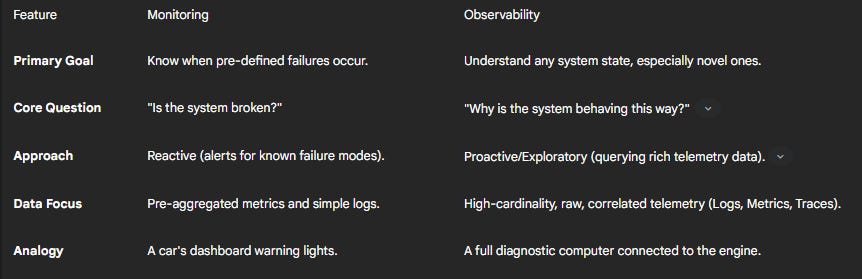

Table 1: A comparative analysis of monitoring and observability, highlighting their fundamental differences in purpose, approach, and data utilization.

1.2 The Catalyst: Why Microservices and Cloud-Native Demand Observability

The industry-wide shift toward observability is not an academic exercise; it is a direct and necessary response to two parallel evolutions in software engineering: architectural changes (the rise of microservices) and organizational changes (the adoption of DevOps and SRE).

The move from monolithic applications to distributed microservices architectures was driven by the need for greater agility, scalability, and independent deployment cycles. However, this architectural choice introduced a significant, unintended consequence: a massive increase in complexity. In a monolith, a single request is handled within a single process, making troubleshooting a relatively straightforward affair of analyzing local logs and stack traces. In a microservices environment, a single user request can trigger a cascade of calls across dozens or even hundreds of independent services. Each service is a potential point of failure, and the interactions between them create an exponential number of emergent behaviors and failure modes.

Traditional monitoring tools, designed for the predictable nature of monoliths, are ill-equipped to handle this distributed complexity. They can report on the health of individual components but cannot tell the end-to-end "story" of a request as it traverses the system. This is the problem that observability, particularly with its pillar of distributed tracing, was born to solve. It became the "linchpin that holds everything together" in these new, decentralized environments.

Simultaneously, the DevOps and SRE movements shifted the responsibility for production health. Instead of a siloed operations team managing monitoring, developers are now increasingly empowered and expected to build, run, and debug their own services in production. This requires a new class of tools and practices that provide deep, code-level insights, a core tenet of observability. For Site Reliability Engineering (SRE) teams, observability is not just a tool but a core discipline for defining and meeting reliability targets.

1.3 Domain-Oriented Observability: Instrumenting for Business Value

While having rich telemetry is essential, the kind of telemetry collected is equally important. Often, instrumentation code is technical and low-level, focusing on metrics like CPU utilization or network I/O. This technical instrumentation, while useful, can clutter the core business logic of an application with verbose calls to logging and metrics frameworks, making the code harder to read, maintain, and test.

A more advanced approach, articulated by Martin Fowler, is Domain-Oriented Observability. This philosophy advocates for treating business-focused observability as a first-class concept within the codebase. Instead of only tracking low-level technical metrics, developers should instrument the code to emit signals about high-level, business-relevant events. For example, in an e-commerce application, observing a

discount_code_applied event or a payment_failed event is more directly valuable to the business than knowing the thread count of the payment service. These product-oriented metrics more closely reflect whether the system is achieving its intended business goals.

To implement this without polluting the core logic, the "Domain Probe" pattern can be employed. In this pattern, the domain object (e.g., a ShoppingCart) does not interact directly with a logging or metrics library. Instead, it reports a high-level "Domain Observation" (e.g., DiscountApplied(code)) to an abstract "Probe" interface. The concrete implementation of this probe then handles the technical details of generating the corresponding logs, metrics, and trace attributes. This decouples the business logic from the instrumentation details, resulting in cleaner code and making the observability logic itself more testable.

This approach has a profound impact on how reliability is measured and communicated. Traditional Service Level Objectives (SLOs) are often technical (e.g., 99.9% uptime, P99 latency <200ms). While important, these metrics don't always translate directly to user satisfaction. A user doesn't care about P99 latency; they care if they can successfully add an item to their cart. Domain-Oriented Observability allows for the creation of business-centric metrics, such as

cart_addition_success_rate. This enables teams to define SLOs in terms that product managers and business stakeholders can understand (e.g., "99.95% of cart additions must succeed within 2 seconds"). This directly connects the engineering work of maintaining reliability to tangible business outcomes, making the value of that work clear to the entire organization.

---

Part 2: The Three Pillars of Telemetry: A Practitioner's Deep Dive

Observability is built upon three foundational types of telemetry data, often called the "three pillars": logs, metrics, and traces. While each provides a different perspective, their true power is unlocked when they are correlated, providing a multi-resolution view of a single system event. Mastering observability requires a practitioner's understanding of how to generate, manage, and utilize each of these pillars according to production-grade best practices.

2.1 Logs: The High-Fidelity Record of Events

Logs are the most familiar form of telemetry: timestamped records of discrete events that have occurred within a system. They serve as a detailed "diary of everything that happens," providing rich, contextual information that is indispensable for debugging and post-mortem analysis. However, the utility of logs in a modern, automated environment depends entirely on their format.

The evolution from simple, unstructured plaintext logs to machine-parsable structured logs is a critical step toward observability. While a human can read a line like INFO|New report created by user 4253, it is difficult for a machine to reliably parse and query this information at scale. By formatting logs as structured data, typically JSON, each log entry becomes a rich data object with key-value pairs, transforming the entire logging output into a queryable dataset.

Best Practices for Production-Ready Structured Logging

To ensure logs are a reliable and useful source of information, developers must adhere to a set of critical best practices:

• Consistency is King: A standardized log format and schema must be used across all services in a distributed system. JSON is the de facto standard due to its widespread support in tooling. This consistency ensures that logs from different services can be aggregated and queried uniformly.

• Standardize Timestamps: To prevent ambiguity and simplify correlation, all timestamps must be recorded in UTC and formatted according to the ISO 8601 standard (e.g., 2024-10-26T10:00:00.123Z).

• Enrich with Context: Every log entry should be enriched with contextual metadata. At a minimum, this includes service_name, hostname or container_id, and build_version. Most importantly, to enable correlation with the other pillars, every log must include the active trace_id and span_id whenever an operation is part of a distributed trace.

• Use Log Levels Correctly: Semantic log levels (DEBUG, INFO, WARN, ERROR, FATAL) should be used to indicate the severity of an event. In production, the default logging level should typically be INFO to manage volume, but the system should support dynamically changing the log level for specific services or requests to DEBUG to facilitate live troubleshooting without a redeployment.

• Prioritize Security: Logs must never contain sensitive data, such as Personally Identifiable Information (PII), passwords, credit card numbers, or API keys. Automated redaction, masking, or obfuscation techniques should be built into the logging pipeline to prevent accidental data leakage.

Choosing Your Logging Library

Most modern programming languages have robust libraries that facilitate structured logging. A few popular choices include:

• Python: structlog is highly recommended for its powerful and flexible processor chain, which makes it easy to add context, format logs as JSON, and integrate with other frameworks.

• Java: Logback and Log4j2 are the standard choices. They can be configured with a JSON layout encoder, such as LogstashLogbackEncoder, to produce structured output. Using the Mapped Diagnostic Context (MDC) is the standard pattern for adding contextual information like trace_id to all logs within a request's scope.

• Go: For high-performance applications, zap is a popular choice known for its speed and structured logging capabilities. logrus is another excellent option that offers a more user-friendly API.

• Node.js: pino is favored for its exceptional performance and low overhead, making it ideal for high-throughput, asynchronous applications. It defaults to JSON output.

2.2 Metrics: The Quantitative Pulse of the System

Metrics are numerical measurements captured over time that provide a quantitative view of a system's health and performance. They are typically aggregated into time series and are highly efficient to store and query, making them ideal for dashboards, alerting, and trend analysis. The Prometheus monitoring system has established the de facto standard for metric types in the cloud-native ecosystem.

The four core Prometheus metric types are:

• Counter: A cumulative value that only ever increases or resets to zero on a restart. It is ideal for tracking totals, such as http_requests_total or errors_total.

• Gauge: A single numerical value that can arbitrarily go up and down. It is used for measurements like cpu_temperature_celsius or active_database_connections.

• Histogram: Samples observations (like request durations or response sizes) and counts them in configurable buckets. This is the most powerful type for measuring latency, as it allows for the calculation of statistical percentiles (e.g., 95th or 99th percentile latency) on the server side using PromQL queries.

• Summary: Similar to a histogram, it also samples observations. However, it calculates configurable quantiles on the client side and exposes them directly. Histograms are generally preferred as they are more flexible and less resource-intensive on the client.

Systematic Monitoring Methodologies

While collecting metrics is straightforward, interpreting them requires a systematic approach. Several well-established methodologies provide frameworks for monitoring different parts of a system.

Google's Four Golden Signals The Four Golden Signals, from Google's Site Reliability Engineering (SRE) book, are the standard for monitoring the health of a user-facing system. They are:

1. Latency: The time it takes to serve a request. It is critical to distinguish between the latency of successful requests and the latency of failed requests, as the latter can often be misleadingly fast.

2. Traffic: A measure of the demand being placed on the system, typically measured in requests per second for an HTTP service.

3. Errors: The rate of requests that are failing, either explicitly (e.g., HTTP 500 errors) or implicitly (e.g., a correct response with incorrect content).

4. Saturation: A measure of how "full" a service is, representing its proximity to reaching a resource capacity limit. It is often a leading indicator of future latency issues and can be measured by things like queue depth or high CPU utilization.

The RED Method (for Services) Developed by Tom Wilkie, the RED method is a simplified, service-centric methodology that is particularly well-suited for monitoring request-driven microservices. It focuses on three key metrics for every service:

1. Rate (R): The number of requests per second the service is receiving.

2. Errors (E): The number of those requests that are failing per second.

3. Duration (D): The distribution of the amount of time each request takes, typically captured with a histogram to analyze percentiles.

The USE Method (for Resources) Created by performance expert Brendan Gregg, the USE method provides a framework for analyzing the health of system resources (e.g., CPU, memory, disks, network). For every resource, it checks:

1. Utilization (U): The percentage of time the resource was busy. High utilization can be an indicator of a bottleneck.

2. Saturation (S): The degree to which work is queued for the resource because it cannot be serviced. Any amount of sustained saturation is typically a problem.

3. Errors (E): The count of error events associated with the resource (e.g., network packet drops).

These methodologies are not mutually exclusive but are, in fact, complementary. A complete view of a system requires understanding both the service's health (RED) and the health of the underlying infrastructure (USE). A spike in a service's request duration (RED) could be caused by an application bug, but it could just as easily be caused by CPU saturation (USE) on the host machine. A production-ready dashboard should display both sets of metrics to allow engineers to quickly differentiate between application-level and infrastructure-level problems.

Table 2: A comparison of the three primary monitoring methodologies, outlining their focus areas and the fundamental questions they help answer.

2.3 Traces: The Story of a Single Request

In a distributed system, the most challenging questions often revolve around the end-to-end flow of a single request. This is where distributed tracing, the third pillar of observability, becomes indispensable.

Anatomy of a Distributed Trace

A distributed trace reconstructs the entire journey of a request as it propagates through multiple services. Its fundamental components are:

• Span: The basic unit of work in a trace. A span is a named, timed operation, such as an HTTP API call, a database query, or a function execution. Each span contains a unique span_id, timing information, and a set of key-value pairs called attributes (or tags) and timestamped log events that provide additional context.

• Trace: A collection of spans that share a single, unique trace_id. A trace represents the complete lifecycle of a single request or transaction. Spans within a trace are connected in a parent-child hierarchy via a parent_span_id, forming a directed acyclic graph.

• Trace Context Propagation: This is the mechanism that links spans together across service boundaries. When a service makes a call to another service, it injects the trace_id and the current span_id (which becomes the parent ID for the next span) into the request, typically within HTTP headers. The W3C Trace Context specification is the industry standard for this propagation, ensuring interoperability between different systems.

Visualizing the Flow and The Power of Sampling

Trace visualization tools like Jaeger use the parent-child relationships between spans to render a flame graph or waterfall diagram. This powerful visualization shows the sequence and duration of every operation in a distributed transaction, making it immediately apparent where time is being spent, where bottlenecks exist, and where errors are occurring.

However, capturing a trace for every single request in a high-traffic production system can generate an enormous amount of data and incur significant performance and cost overhead. To manage this,

sampling is employed. This is the practice of capturing only a subset of traces. There are two primary strategies:

• Head-based Sampling: The decision to sample a trace is made at the very beginning (the "head") of the request. This is simple to implement but may miss traces for errors that occur later in the request flow.

• Tail-based Sampling: The decision is deferred until the entire trace has completed. This allows for more intelligent sampling decisions, such as capturing all traces that result in an error or exhibit high latency. It is more powerful but also more complex and resource-intensive to implement.

The three pillars—logs, metrics, and traces—are not isolated sources of information. They are deeply interconnected views of the same underlying system events. The true power of an observable system is realized when an engineer can seamlessly pivot between them. A typical troubleshooting workflow demonstrates this synergy: an alert fires because a metric (e.g., P99 latency) has crossed a threshold, telling the engineer what is wrong. The engineer can then examine a trace from that time period to see where the latency is occurring (a specific downstream service call). Finally, by inspecting the logs that are correlated to that specific trace via its trace_id, the engineer can discover the why (e.g., a log message indicating a database connection timeout). This Metric -> Trace -> Log workflow is the fundamental, high-velocity troubleshooting loop in a modern production environment.

---

Part 3: The Modern Open-Source Observability Stack

Building an observable system requires a robust set of tools. While many commercial platforms exist, a powerful, flexible, and vendor-agnostic stack can be built entirely from open-source projects. This approach provides maximum control and avoids vendor lock-in. The modern stack is centered around OpenTelemetry as the standard for instrumentation, with specialized backends for each of the three pillars.

3.1 The Standard: OpenTelemetry (OTel)

OpenTelemetry is a Cloud Native Computing Foundation (CNCF) project that has rapidly become the industry standard for instrumenting cloud-native applications. Its primary goal is to provide a single, unified set of APIs, SDKs, and protocols for collecting all telemetry data—traces, metrics, and logs. This solves the long-standing problem of vendor lock-in, where instrumenting an application with a specific vendor's agent made it difficult and costly to switch to a different backend. With OpenTelemetry, the mantra is: instrument once, export anywhere.

OTel Architecture Deep Dive

The OpenTelemetry ecosystem consists of several key components:

• APIs and SDKs: These are the language-specific libraries that developers use to add instrumentation to their application code. The API provides the interfaces for creating spans, metrics, and logs, while the SDK is the concrete implementation that wires up the configuration, processing, and exporting of this data.

• The Collector: This is a critical, vendor-agnostic proxy that can be run as an agent or a gateway. It receives telemetry data from applications, processes it, and exports it to one or more backends. The Collector's architecture is based on pipelines, which consist of Receivers -> Processors -> Exporters.

  • Receivers ingest data in various formats (e.g., OTLP, Jaeger, Prometheus).

  • Processors can modify the data, for example, by batching it for efficiency, adding attributes, or filtering sensitive information.

  • Exporters send the data to one or more backends (e.g., Prometheus, Jaeger, Loki, or a commercial platform).

• OTLP (OpenTelemetry Protocol): This is the native wire protocol for transmitting telemetry data between SDKs, Collectors, and backends. It is designed to be efficient and robust for all three signal types.

Deployment Patterns

The OpenTelemetry Collector can be deployed in two main patterns:

• Agent (Sidecar): A Collector instance is deployed alongside each application instance (e.g., as a sidecar container in Kubernetes). This offloads telemetry processing from the application, allows for host-level metric collection, and provides a consistent endpoint for applications to send data to.

• Gateway (Standalone): A fleet of standalone Collector instances is deployed as a central gateway. Agents send their data to this gateway, which can then perform centralized processing, aggregation, and routing to various backends. This pattern is useful for managing telemetry at scale.

3.2 Metrics Engine: Prometheus

Prometheus is a CNCF-graduated project and the de facto standard for metrics collection and alerting in cloud-native environments. Its design is particularly well-suited for the dynamic nature of containerized systems.

• Core Concepts:

  • Pull Model: Prometheus operates on a pull-based model, where it periodically scrapes HTTP endpoints exposed by applications or exporters to collect metrics. This centralized control over data collection simplifies configuration and makes it easier to manage service discovery.

  • Time-Series Database (TSDB): Prometheus includes a highly efficient, built-in time-series database for storing metrics data on local disk.

  • PromQL: Prometheus features a powerful and expressive query language called PromQL, which is designed specifically for time-series data and enables complex aggregations, calculations, and alerting rules.

• Getting Started: A basic Prometheus setup involves downloading the binary and creating a prometheus.yml configuration file. This file defines global settings like the scrape interval and lists the scrape_configs for the targets that Prometheus should monitor.

3.3 Tracing Backend: Jaeger

Jaeger is another CNCF-graduated project and a widely adopted open-source solution for end-to-end distributed tracing. It provides the backend storage, query capabilities, and visualization UI needed to make sense of trace data.

• Architecture: The Jaeger architecture is composed of several components: the Jaeger Agent, which is an optional network daemon that listens for spans from clients; the Jaeger Collector, which receives traces and writes them to storage; a storage backend (with support for Cassandra and Elasticsearch for production); the Jaeger Query service, which retrieves traces from storage; and the Jaeger UI for visualization.

• Getting Started: For local development and testing, Jaeger provides an all-in-one Docker image. This single container includes all the necessary components and uses an in-memory storage backend, making it incredibly easy to get started with a single command.

3.4 Logging Backend: The Great Debate - ELK vs. Loki

For log aggregation and analysis, the open-source community offers two primary contenders, each with a distinct architecture and philosophy.

• The Contenders:

  • ELK Stack: The established powerhouse, ELK consists of Elasticsearch (a powerful full-text search and analytics engine), Logstash (a flexible data processing pipeline), and Kibana (a feature-rich visualization and exploration UI).

  • Grafana Loki: A newer, "Prometheus-inspired" challenger. Loki takes a different approach by indexing only a small set of metadata (called labels) for each log stream, rather than the full content of the logs.

• Architectural Showdown:

  • Indexing: This is the core difference. Elasticsearch builds a full inverted index on the entire content of every log message, making it incredibly powerful for search and discovery. Loki, by contrast, only indexes the labels (e.g.,

    service="api", cluster="prod-us-east-1"). The log content itself is compressed and stored as chunks in object storage.

  • Resource Consumption: Because of its full-text indexing, the ELK stack is notoriously resource-intensive, often described as a "resource hog" that requires significant CPU, memory, and storage to run at scale. Loki's minimalist indexing strategy makes it far more lightweight and cost-effective to operate.

  • Querying: ELK's query languages (KQL, Lucene) provide powerful, flexible full-text search capabilities, allowing users to find any term within any log message. Loki's query language, LogQL, is designed to first filter log streams using the indexed labels and then optionally grep the content of those streams. This is extremely fast for targeted queries based on known labels but less suitable for broad, exploratory searches on unknown log content.

This technical difference reflects a deeper philosophical choice about the role of logs. The ELK stack treats logs as a primary data source for rich, unstructured data mining, answering the question, "What interesting things can I find buried in my logs?". This is a "log-first" observability strategy. Loki, on the other hand, assumes that an engineer will typically start an investigation with a metric or a trace, which provides a set of labels (like

service, instance, and trace_id). The engineer then uses those same labels to efficiently pull the exact log streams needed for debugging. This is a "metrics/traces-first" strategy that treats logs as a secondary, contextual data source. A team that relies heavily on log analytics for business intelligence or security forensics might prefer ELK. A team that primarily follows the

Metric -> Trace -> Log troubleshooting workflow and is highly cost-sensitive will likely find Loki to be a better fit.

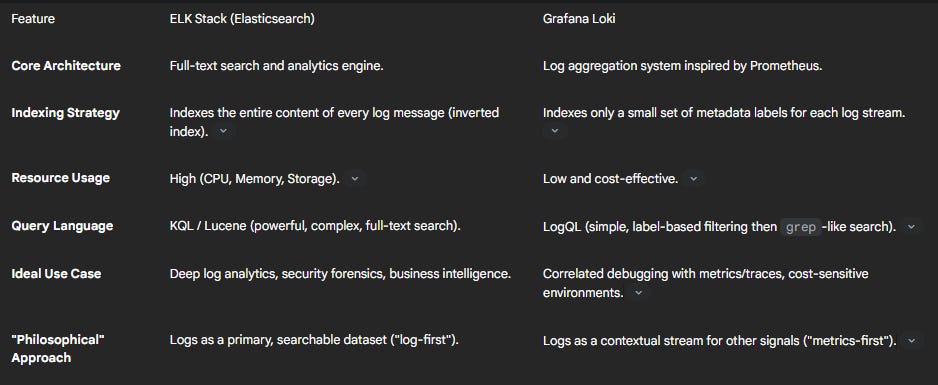

Table 3: A side-by-side comparison of the ELK Stack and Grafana Loki, highlighting their core architectural and philosophical differences.

3.5 The Unified View: Grafana

Grafana is the premier open-source platform for data visualization, analytics, and monitoring. Its greatest strength is its plugin-based architecture, which allows it to connect to a vast array of different data sources. In this stack, Grafana serves as the "single pane of glass"—the unified dashboard where all the telemetry data comes together.

It will be configured with data sources for Prometheus (to query metrics), Jaeger (to query and visualize traces), and Loki (to query and display logs). This allows for the creation of rich, correlated dashboards that display metrics graphs, lists of recent traces, and relevant log streams all in one place, providing the holistic view that is the ultimate goal of an observability practice.

The modern open-source stack represents a significant strategic advantage over monolithic commercial platforms. Its composable, decoupled nature, with OpenTelemetry serving as a standardized data plane, allows for unparalleled flexibility. An organization can start with a fully open-source stack and later decide to integrate or switch to a commercial backend without needing to re-instrument hundreds of applications; they simply reconfigure the OpenTelemetry Collector. This modularity dramatically reduces the cost, risk, and engineering effort associated with evolving an organization's observability strategy.

---

Part 4: End-to-End Project: Building and Instrumenting an Observable E-Commerce API

Theory and tool introductions are valuable, but true mastery comes from hands-on practice. This section provides a complete, end-to-end project that integrates all the concepts and tools discussed. The goal is to build a simple but realistic microservices-based e-commerce API, instrument it from the ground up using OpenTelemetry, and configure a full observability stack to monitor it.

4.1 Project Architecture & Setup

The project simulates a basic e-commerce backend composed of three microservices, a database, and a message queue for asynchronous communication.

• Services:

  • Users Service (Go): A simple service for managing user data.

  • Products Service (Python/Flask): Manages product inventory and details.

  • Orders Service (Node.js/Express): The primary entry point for creating orders. It communicates with the Users and Products services to validate an order before processing.

• Dependencies:

  • PostgreSQL: A single database instance used by all three services for persistent storage.

  • RabbitMQ: A message queue used by the Orders Service to asynchronously publish a notification event after an order is successfully created.

• The docker-compose.yml: The entire system, including the application services and the full observability stack, will be orchestrated using Docker Compose. This provides a reproducible, single-command setup for development. The stack includes:

  • The three application services.

  • PostgreSQL and RabbitMQ.

  • otel-collector: The OpenTelemetry Collector, serving as the central telemetry hub.

  • prometheus: The metrics backend.

  • jaeger-all-in-one: The tracing backend.

  • loki: The logging backend.

  • promtail: A log shipping agent that scrapes logs from containers and pushes them to Loki.

  • grafana: The unified visualization dashboard.

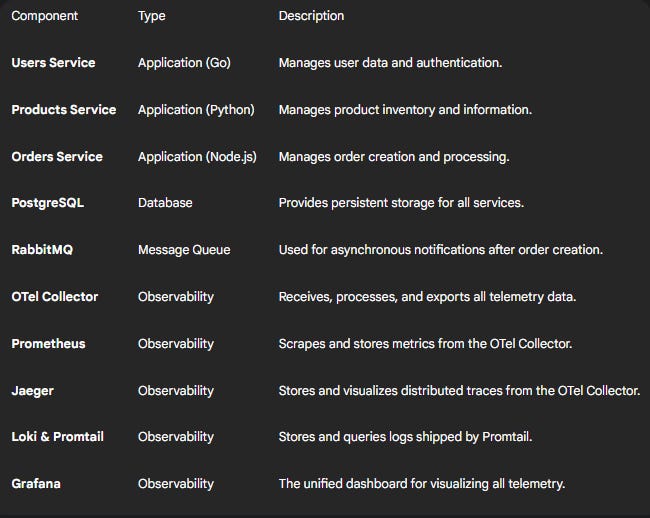

The following table provides a high-level overview of the project's components.

Table 4: A high-level overview of the components in the end-to-end e-commerce API project.

A complete docker-compose.yml file orchestrates this entire stack, defining the services, their dependencies, networks, and port mappings.

4.2 Instrumenting for Traces with OpenTelemetry

The first step is to instrument each microservice to generate and export distributed traces. The process is similar for each language, leveraging OpenTelemetry's auto-instrumentation libraries where possible and adding manual spans for greater detail.

• Step-by-step guide for each service (Go, Python, Node.js):

  1. Add SDK Dependencies: The appropriate OpenTelemetry API and SDK packages are added to each project's dependency file (e.g., go.mod, requirements.txt, package.json).

  2. Initialize TracerProvider: In the application's startup code, a TracerProvider is configured. This includes setting a service.name resource attribute, which is crucial for identifying the service in backend tools.

  3. Configure OTLP Exporter: An OTLP trace exporter is configured to send trace data over gRPC to the OpenTelemetry Collector's endpoint (e.g., otel-collector:4317).

  4. Apply Auto-Instrumentation: For Python and Node.js, auto-instrumentation libraries for web frameworks (Flask, Express), HTTP clients (requests, http), and database drivers (psycopg2) are enabled. These libraries automatically create spans for incoming and outgoing requests and handle trace context propagation, providing excellent baseline visibility with minimal code.

  5. Add Manual Spans: To add more business-specific context, manual spans are created around important pieces of logic. For example, in the Orders Service, a span named calculate_order_total can be wrapped around the price calculation logic. This makes the trace flame graph much more informative.

4.3 Instrumenting for Metrics with OpenTelemetry

Next, the services are instrumented to emit the RED method metrics for each API endpoint.

• Step-by-step guide for each service:

  1. Initialize MeterProvider: Similar to tracing, a MeterProvider is configured in the application's startup code.

  2. Configure OTLP Exporter: An OTLP metrics exporter is configured to send data to the Collector.

  3. Implement RED Metrics: For each service's API, three core metrics are created using the OpenTelemetry Metrics API :

     • Rate: A Counter named http_requests_total is created. It is incremented on every request and includes attributes for the HTTP method and route (e.g., method="POST", route="/orders").

     • Errors: A Counter named http_errors_total is created. It is incremented only when the HTTP response status code is in the 5xx range.

     • Duration: A Histogram named http_request_duration_seconds is created. The duration of every request is recorded in this histogram, which will allow for percentile calculations in Prometheus.

4.4 Instrumenting for Logs with Structured Logging

The final instrumentation step is to ensure logs are structured and correlated with traces.

• Step-by-step guide for each service:

  1. Configure Structured Logging: The chosen logging library for each language (zap for Go, structlog for Python, pino for Node.js) is configured to output all log messages in a structured JSON format to standard output.

  2. Inject Trace Context: This is the most critical step for correlation. A custom logging processor or hook is implemented for each logging library. This processor accesses the active OpenTelemetry SpanContext and automatically injects the current trace_id and span_id as fields into every JSON log message that is written within the scope of a span. When a log is viewed later, this

     trace_id will be the key to finding the exact trace it belongs to.

4.5 Configuring the OpenTelemetry Collector

The OTel Collector is the heart of the telemetry pipeline. Its configuration file, otel-collector-config.yaml, defines how all signals are received, processed, and exported.

• Receivers: The otlp receiver is configured to listen for OTLP data over both gRPC (port 4317) and HTTP (port 4318).

• Processors: The batch processor is used to group telemetry data into batches before exporting, which improves compression and network efficiency. The memory_limiter processor is also enabled to prevent the collector from running out of memory under heavy load.

• Exporters: Three exporters are configured:

  • prometheus: This exporter makes the received metrics available on a /metrics endpoint (e.g., on port 8889), which the Prometheus server will scrape.

  • otlp: This exporter forwards all received trace data to the Jaeger backend (e.g., jaeger-all-in-one:4317).

  • loki: This exporter forwards all received log data directly to the Loki backend (e.g., loki:3100/loki/api/v1/push).

• Service Pipelines: Finally, the service section defines the pipelines that connect these components. Three distinct pipelines are created:

  • traces: receivers: [otlp] -> processors: [batch] -> exporters: [otlp]

  • metrics: receivers: [otlp] -> processors: [batch] -> exporters: [prometheus]

  • logs: receivers: [otlp] -> processors: [batch] -> exporters: [loki] This configuration ensures that each signal type is routed through the correct processing chain to its designated backend.

4.6 Building the Master Dashboard in Grafana

With all backends receiving data, the final step is to create a unified dashboard in Grafana to visualize the entire system's health.

• Data Source Configuration: Inside the Grafana UI, three data sources are added:

  1. A Prometheus data source pointing to the Prometheus server's URL (

http://prometheus:9090

• 1. ).

  2. A Jaeger data source pointing to the Jaeger Query service's URL (

http://jaeger-all-in-one:16686

• 1. ).

  2. A Loki data source pointing to the Loki server's URL (

http://loki:3100

• 1. ).

• Dashboard Creation: A new dashboard titled "E-Commerce Service Health" is created with the following panels :

  • RED Metrics Panels: For each service (Orders, Users, Products), panels are created to visualize the key RED metrics queried from Prometheus. This includes time-series graphs for Request Rate (from rate(http_requests_total[5m])), Error Rate (from rate(http_errors_total[5m])), and P99/P95/P50 Latency (from histogram_quantile(0.99, sum(rate(http_request_duration_seconds_bucket[5m])) by (le))).

  • Traces Panel: A panel using the Jaeger data source is added to show a list of the most recent traces for the Orders Service.

  • Logs Panel: A panel using the Loki data source is added to show a live stream of logs from the Orders Service, queried using a LogQL expression like {service="orders-service"}.

  • The Magic Link (Correlation): The true power of the dashboard comes from linking these panels. Grafana's "Data links" feature is used to configure the latency graph. When an engineer clicks on a point in the graph, it automatically opens the Jaeger UI in a new tab, pre-filtered to show traces from that exact time window. Furthermore, the Jaeger data source in Grafana is configured to automatically detect the traceId in log lines from the Loki data source. This allows an engineer to view a trace in Grafana and then click a button to see the correlated logs from Loki, seamlessly connecting all three pillars.

---

Part 5: From Telemetry to Insight: A Troubleshooting Playbook

With the fully instrumented application and observability stack running, it is now possible to demonstrate how this setup is used to solve realistic production problems. This playbook walks through two common scenarios, illustrating the Metric -> Trace -> Log troubleshooting workflow.

5.1 Scenario 1: Investigating High Latency ("The Slow Checkout")

• The Symptom: An alert fires, or a customer reports that the checkout process is unacceptably slow. The engineering team looks at the "E-Commerce Service Health" dashboard in Grafana and confirms a significant spike in the P99 Latency graph for the Orders Service.

• The Hunt:

  1. From Metric to Trace: The engineer clicks on the peak of the latency spike in the Grafana dashboard. Thanks to the configured data link, this opens the Jaeger UI, automatically filtered to show traces from the Orders Service during that specific time window.

  2. Identify the Slow Trace: In Jaeger, the engineer sorts the traces by duration and selects one of the longest ones. The trace's flame graph is displayed, providing a visual breakdown of the entire request lifecycle. It is immediately obvious that the root span,

     POST /orders, is long. Within that span, a child span representing an HTTP call to the Products Service is consuming the vast majority of the total time.

  3. Drill Down to the Root Cause: The engineer drills into the slow Products Service span. The tags on the span show the exact database query that was executed. The duration of this specific operation confirms it is the bottleneck.

  4. From Trace to Logs: To get even more context, the engineer copies the trace_id from the Jaeger UI. They navigate back to Grafana, open the "Explore" view, and select the Loki data source. They execute a LogQL query: {service="products-service"} | json | trace_id="<pasted_trace_id>".

  5. Confirm the Hypothesis: The query returns the precise log messages generated by the Products Service while handling that specific slow request. The logs might contain a warning about a "slow query" or even a "database connection timeout" error, confirming the hypothesis formed from the trace data.

• The Root Cause & Resolution: The combination of trace and log data points conclusively to a slow database query in the Products Service. Further investigation using a database profiling tool reveals a missing index on a frequently queried column. The resolution is to add the necessary database index, and after deployment, the latency graph in Grafana returns to normal.

5.2 Scenario 2: Diagnosing an Error Spike ("The Failing Payment")

• The Symptom: The "Error Rate" panel for the Orders Service on the Grafana dashboard suddenly spikes, and a corresponding Prometheus alert is triggered and sent to the on-call engineer's PagerDuty.

• The Hunt:

  1. Filter for Error Traces: The engineer opens the Jaeger UI and filters the search for traces from the Orders Service that have an error=true tag. This immediately isolates the problematic transactions.

  2. Analyze the Failed Trace: Opening one of the failed traces, the engineer examines the flame graph. The span corresponding to the Orders Service is highlighted in red, indicating an error. Looking at its child spans, it's clear the error originates from the last operation in the sequence: a call to a (mocked) third-party Payment Gateway service.

  3. Inspect Logs for Details: Within the Jaeger UI, the engineer inspects the tags and logs attached to the failed span. A log message explicitly states, "Payment Gateway returned status 503 Service Unavailable".

• The Root Cause & Resolution: The trace and log data prove that the internal services are functioning correctly, and the root cause of the failure is an outage in an external, third-party dependency. This allows the engineering team to quickly absolve their own systems of blame, update the company's status page to reflect the third-party outage, and potentially trigger a circuit breaker to stop sending requests to the failing payment gateway, thereby protecting their own service from cascading failures. This scenario highlights how distributed tracing is essential for understanding dependencies and rapidly isolating faults in a complex ecosystem.

---

Part 6: The Frontier: Advanced Observability Techniques

The three pillars form the foundation of observability, but the field is constantly evolving. A forward-thinking engineer should be aware of the emerging techniques and technologies that are pushing the boundaries of what is possible.

6.1 The Fourth Pillar: Continuous Profiling

While metrics show the "what" and traces show the "where" of latency between services, they don't always explain why a particular process is slow. Continuous Profiling is an emerging fourth pillar of observability that answers this question by continuously collecting performance data from inside a running process. It reveals exactly where CPU time is being spent and how memory is being allocated, down to the specific function and line number.

Unlike traditional profiling, which is often a heavy, manual process reserved for development environments, continuous profiling tools are designed to run in production 24/7 with extremely low overhead. Open-source tools like

Grafana Pyroscope and Parca are leading this space. By continuously collecting and aggregating profiling data, they allow engineers to:

• Identify CPU-bound bottlenecks in the code that would be invisible to tracing.

• Diagnose memory leaks by analyzing allocation patterns over time.

• Compare profiles between different software versions to spot performance regressions after a deployment.

6.2 Kernel-Level Visibility with eBPF

A revolutionary technology in the Linux world, eBPF (extended Berkeley Packet Filter), is fundamentally changing how observability data is collected. eBPF allows developers to run small, sandboxed programs directly within the Linux kernel itself. These programs can be safely attached to various hooks—such as system calls, network events, or function entries—to collect incredibly detailed performance data with minimal overhead.

The impact of eBPF on observability is profound. It enables the collection of deep telemetry data—such as network traffic statistics, file access patterns, and application requests—without requiring any changes to the application's code. This "agentless" approach eliminates the need for manual instrumentation with SDKs. Many modern observability tools, including the continuous profiler Parca, leverage eBPF to efficiently gather data from the kernel space. As eBPF becomes more widespread, it promises a future where deep observability is a default property of the underlying operating system, not just an addition to the application.

6.3 The Rise of AIOps and Generative AI

As the volume and complexity of telemetry data grow, manually analyzing it becomes increasingly challenging. This has led to the rise of AIOps (AI for IT Operations), which applies machine learning and artificial intelligence to automate observability tasks. AIOps platforms can:

• Automatically detect anomalies in metrics and traces that might be missed by static alert thresholds.

• Correlate signals across the three pillars to identify likely root causes of incidents.

• Reduce alert fatigue by grouping related alerts into a single, actionable incident.

More recently, the advent of Large Language Models (LLMs) and Generative AI is introducing a new paradigm for interacting with observability data. Instead of writing complex PromQL or LogQL queries, engineers can ask questions in natural language, such as, "What was the P99 latency for the payment service during last week's outage, and can you show me the logs from the pods that were crashing?". This shift from dashboards to conversations promises to make observability more accessible and powerful, further reducing the cognitive load on engineers during high-stress incidents.

---

Conclusion: Becoming an Observability Practitioner

The journey from seeing "strong understanding of observability frameworks" on a job description to possessing true, production-ready skills is comprehensive. It involves moving beyond definitions to deeply internalize the principles, practices, and tools that define modern system analysis. By progressing through this guide, a developer can build a robust and defensible skillset.

• Recap of Core Skills:

  • Understanding: The journey began with understanding the why—the conceptual shift from reactive monitoring to proactive observability, a shift necessitated by the complexity of modern microservices and cloud-native architectures.

  • Practices: It then moved to the foundational practices for generating high-quality telemetry: implementing structured logging for machine-parsable events, applying systematic monitoring methodologies like the RED and USE methods to measure service and resource health, and leveraging distributed tracing to tell the end-to-end story of a request.

  • Frameworks & Tools: Finally, these practices were realized through hands-on experience with the premier open-source observability stack. This includes using OpenTelemetry as the vendor-agnostic standard for instrumentation, and integrating it with a composable backend of Prometheus for metrics, Jaeger for traces, Loki or the ELK stack for logs, and Grafana for unified visualization.

• The Observability Mindset: More than just a set of tools, observability is a mindset. It is a culture of curiosity, data-driven decision-making, and proactive problem-solving. It means designing systems to be understandable from the outside from day one, embedding instrumentation as a first-class feature, and relentlessly asking "Why?" when confronted with unexpected behavior.

A developer who has completed this journey is no longer just familiar with the buzzwords on a job description. They are a practitioner, capable of architecting, building, instrumenting, and troubleshooting a production-grade observable system from end to end. They can confidently enter a technical interview not just to define what a distributed trace is, but to explain how they would use it to diagnose a real-world latency issue, how to correlate it with the right metrics and logs, and how to build the very platform that makes this analysis possible. This is the skill set that defines a modern, high-impact engineer.
